| CPU |
Broadcom BCM2711, Quad-core A72 (ARM v8) @ 1.5 GHz |
| Memory |
2 GB (1 GB/4 GB/8 GB optional) LPDDR4 |
| Flash |
8 GB (16 GB/32 GB optional) eMMC |
| Operating System |
Raspbian/ElastOS |
| Ethernet |
Gigabit Ethernet x 1, (1-WAN or 1-LAN Configurable) |
| Cellular |
4G LTE or 3G or 2G or NB-IoT or CAT-M1 |
| Wi-Fi |
Dual-band 2.4 GHz/5 GHz 802.11b/g/n |
| Bluetooth |
Supported |
| GPS |
Cellular Module built-in supported (Optional) |
| SIM |
1.8 V/3 V; drawer-type Nano card holder x 1 |
| Antenna |
4G: inside SMA x 1, WiFi/Bluetooth: inside SMA x 1 |
| Industrial Serial Port |
RS-232 x 1, RS-485 x 1; ESD protection: 15 KV |
| I/O |
2-channel digital input DI, 2-channel digital/pulse output DO |
| USB |
USB 2.0 x 2 for peripherals, USB-C x 1 for Power supply and Console |
| HDMI |
HDMI 2.0 x 1, (Up to 4Kp60 video & audio output) |
| Additional Drive |
1 x M.2 socket with 2280 NVME SSD support |
| Watchdog Timer |
Standalone Watchdog timer |
| Power Supply |
Wide Range Voltages 9 to 36 V DC/1 A |
| Power Terminal |
Unpluggable industrial terminal connection |
| Power Consumption |
Less than 10 W (system) |
| Real-Time Clock (RTC) |
Embedded RTC, power supply with a supercapacitor (Optional) |
| Protection |
IP30 |
| Housing |
Aluminum Heatsink |
| Cooling |
Fanless cooling |
| Installation |

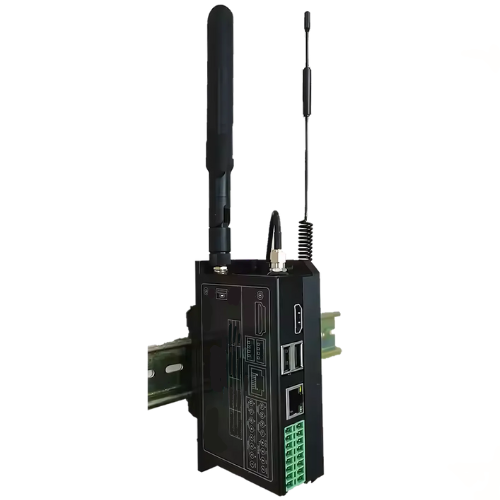

DIN-rail, wall mounting |
| Storage Temperature |
-22 °F to 167 °F (-30 °C to 75 °C) |
| Ambient Humidity |
5 to 95 % (non-condensing) |
| Operating Temperature |
-13 °F to 158 °F (-25 °C to 70 °C) |
| Dimensions |
4.88 in x 2.99 in x 1.38 in (12.4 cm x 7.6 cm x 3.5 cm) |
