Overview

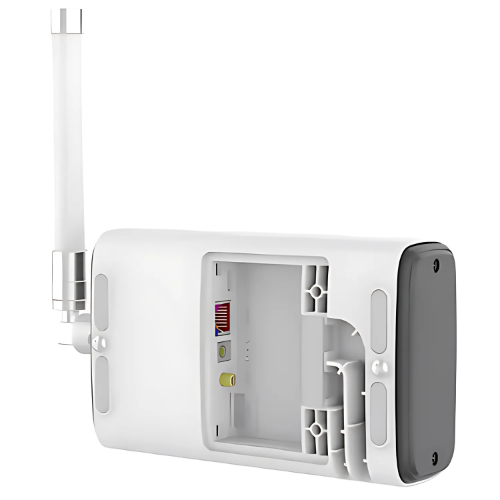

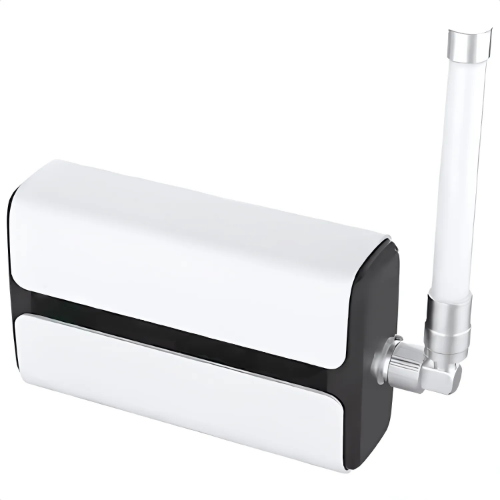

Specimen Track industrial LoRaWAN gateway with edge computing & global frequency support is an industrial gateway based on LoRaWAN technology. It features Edge and Fog computing capabilities with Python programming, rich serial interface and free embedded NS, available in CN 470 or IN 865 or EU 868 or RU 864 or US 915 or AU 915 or KR 920 or AS 923 global frequencies. Our LoRaWAN ecosystem partners include The Things Network (TTN), LORIOT, Ubidots, ChirpStack, IoThink Solutions, Orbiwise, LoRa Alliance and ThingWorx. This has been distributed to dozens of regions and deployed in pilot use cases and LPWAN projects.
Features
- IP 65 rating
- NXP Quad Core processor
- Semtech SX 1302 LoRa chip
- Multiple backhaul connectivities
- Embedded network server
- Compatible with multiple network servers
Technical Specifications
| Chipset | SX 1302 LoRa Chip |
| Processor | Quad Core 1.5 GHz SoC |
| Duplex Mode | Full duplex or half duplex |
| Power Consumption | 2.4 W to 4.2 W |
| Frequency | CN 470, IN 865, EU 868, AU 915, US 915, KR 920, AS 923 |
| Network Capacity | 1.24 (6,561 ft or 2 km) radius area, 2000 end nodes |
| Channels | 8 |
| Protection Rating | IP65 |
| Operating Temperature | – 40 °F to 158 °F (- 40 ℃ to 70 ℃) |
| Transmission Distance (Open) | Up to 49,213 ft (15 km) |
| Transmission Distance (Urban) | Up to 6,561 ft (2 km) |
