Overview

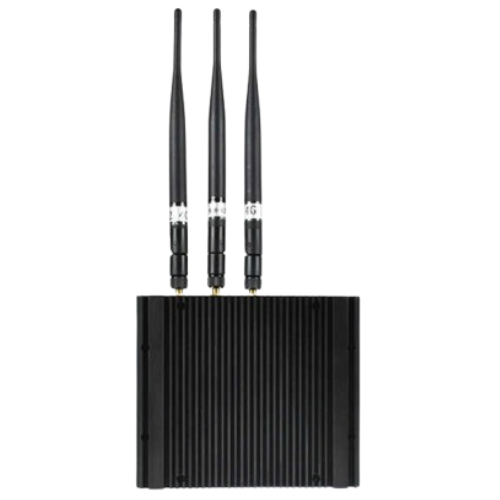

Specimen Track industrial outdoor gateway with gps and 4g connectivity is a city-level communication gateway based on LoRaWAN protocol. It runs in OPWRT operating system and supports uplink multi-channel concurrency. It can build large-capacity IoT network system more quickly and efficiently, and realize data collection, management, control and other functions of various LoRaWAN application nodes. Working band 433-928MHz, can cover 5-8KM in urban environment, open area coverage is greater than 15KM, support access to 100,000 node devices, gateway through 2G or 3G or 4G, Ethernet access to the cloud platform.It is a rugged LoRaWAN gateway designed for outdoor public or private network deployments. This high-performance IP65 gateway is designed to withstand the harshest environmental factors including humidity, dust, wind, rain, snow and extreme heat to support LoRaWAN® applications in almost any environment. Provides persistent, low-power, wide-area connectivity to support M2M and IoT applications for LoRa service providers and individual enterprises looking to extend the reach of their LoRa networks, which can be deployed as part of an existing telecom tower, stand-alone stand or wall installation.
Features
- Support for LoRaWAN networks
- 8 or 16 LoRa receiving channels, 1 transmitting channel, of which 8 receiving channels receive data simultaneously
- Communication distance: the effective communication distance of urban environment is more than 5KM, and the effective communication distance of open environment is more than 15KM
- Built-in GNSS synchronizes position coordinate information
- Support Ethernet, 2G, 3G, 4G LTE data backhaul links
- Support full duplex data communication
- Number of connected nodes: Thousands of terminal nodes can be connected depending on the data type
- Size: 21019060 mm
- Solid shell IP65 waterproof, working temperature -40 °C to +80 °C suitable for outdoor environment
Technical Specifications
| Application | Lora GPS locator |
| Function | Outdoor gateway LoRawan base station |
| Support Network | LoRa |
| Hardware | CPU: 560 MHz, AR9344. RAM: DDR2, 128Mb. FLASH: SPl Flash 16M. CPU temperature sensor. Hardware watchdog. |
| Communication | Ethernet 100 Base 2. UART interface used to debug terminals. LED indicator. Secure VPN without external IP address. Compatible with LoRaWAN (433 MHz to 510 MHz or 863 MHz to 928 MHz, optional). LoRa Sensitivity -142.5 dBm, 8-channel LoRa modulator. Effective communication distance of more than 15KM. External GPS, Wi-Fi and 4G LTE antenna. Antenna lightning protection. |
| Power Source | PoE IEEE 802.3 af Class A, 24 V. 12 V to 24 V DC power supply. Average power consumption : 5W. |
| Outer Shell | IP65 waterproof UV resistant, impact resistant |
| Install | Wall mount, pole mount, suspension |

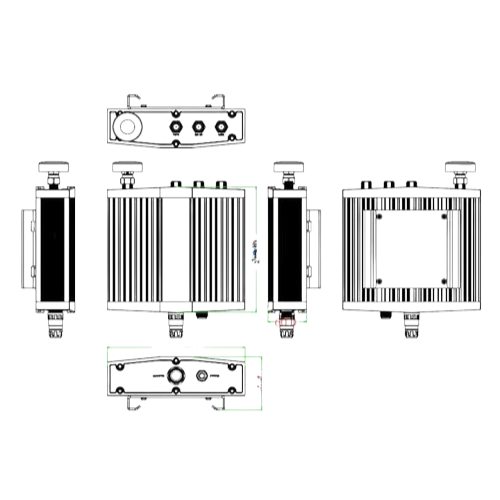

| Basic Information | Working temperature: 104°F or 176°F (-40 ℃ or +80 ℃) (industrial grade) Storage temperature: -40°F or 257°F (-40℃ or +125 ℃) Dimensions: 8.27 in × 7.61 in × 2.52 in (21 cm × 19.3 cm × 6.4 cm) Weight: 4.51 Ibs (2.05KG) |
