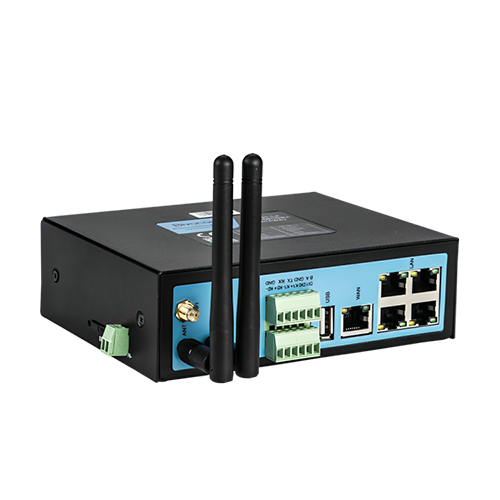

Industrial PoE Smart Gateway for Serial, Ethernet, DI/DO & Bluetooth Sensors – Specimen Track

Compact 5G NR IoT gateway with multiple ports, edge computing capabilities, and support for industrial protocols.

SKU: STRLRG-138 Category:

Features

  • GNSS option
  • Dual SIM/module
  • 2GB local storage
  • Micro SD backup
  • OpenWRT Linux
  • Python, C/C++ support



Technical Specifications

Programmable Python, C/C++
Ethernet Ports 5 x 10/100/1000 Mbps
Serial Ports 1 x RS232 or 2 x RS485
Power Output 1 x DC power output
Wireless 5G NR SA/NSA or 4G LTE or WiFi or GNSS (Option)
External Storage 1 x Micro SD interface, Up to 32G
Network Protocols SNMP or RIPv1/v2 or OSPF or BGP or DNS or DDNS or HTTP or telnet or SSH
VPN IPsec or PPTP or L2TP or GRE or OpenVPN
SIM Single or dual SIM
OS Linux
Size 11.81 in x 10.24 in x 3.15 in (300 mm x 260 mm x 80 mm)
Weight 3.31 lb (1500 g)
