Features
- Analogue Signals with HART or Digital Signals with RS 485 or MODBUS are Optional
- Unique Echo Processing Technology with The Functions of an Echo Curve Display and False Echo Storage

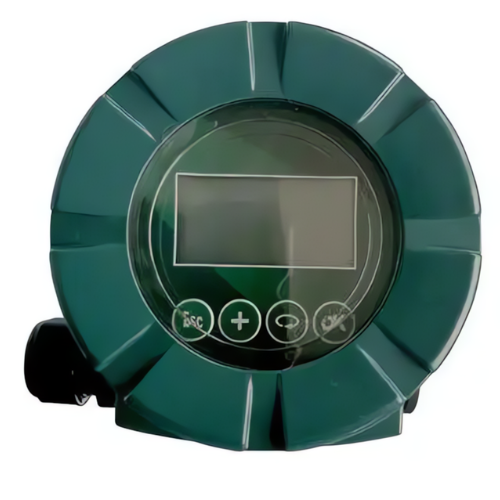

- Built-in Programmer with Buttons for Easy Setting and Calibration
- Built-in Temperature Compensation; Intrinsically Safe is Optional
Technical Specifications
| Grade | Industrial |
| Customized Support | OEM |
| Application | Be Suitable for Liquids Level, Solid Particles Level Measurement. |
| Measuring Range | 1.64 ft to 65.62 ft (0.5 m to 20 m) |
| Process Connection | Thread M 95×2,Bracket or Flanges |
| Process Pressure | – 0.02 MPa to 0.1 MPa |
| Accuracy | +/- 0.25% of The Full Range |
| Signal Output | 4 – 20mA or HART or RS 485 or Modbus |
| Power Supply | 24 V DC with Two Wires; 24 V DC or 220V AC with Four Wires |
| Explosion Proof | Ex ia IIB T6 Ga |
| Typical Applications | For Both Liquid Level and Solid Level Measurement in Various Industrial Fields, Especially for Water Treatment Industry |
| Measuring Range | Standard Probe: Liquid: 1.64 ft to 65.62 ft(0.4 m to 20 m); Solid: 1.64 ft to 26.25 ft(0.4 m to 8.001 m) (liquid, 0.5 m to 20 m; solid, 0.5 m to 8 m) |
| Sealed and Anti-corrosive Probe: Liquid: 1.64 ft to 52.49 ft (0.4 m to 15.9 m); Solid: 1.64 ft to 26.25 ft (0.4 m to 8.001 m) (liquid, 0.5 m to 16m; solid, 0.5 m to 8m) | |
| Probe Material | PA66+GF30 |
| Ultrasonic Frequency | 28 kHz |
| Enclosure Protection Grade | Plastic Enclosure-IP66; AL Enclosure-IP67 |
| Signal Output | 4 mA to 20 mA+HART, 24 V DC (2-wire or 4-wire); 220 V AC (4-wire) |
| RS 485 or MODBUS | |
| Process Temperature | -40 °F to 158 °F (-40 ℃ to +70 ℃) |
