Technical Specifications
| Light source | Infrared (905 nm) |
| Scanning angle range | 270 º |
| Sampling frequency | 30 KHz |
| Scanning frequency | 10 Hz/ 15 Hz/ 20 Hz/ 25 Hz/ 30 Hz |
| Scanning angle resolution | 0.12 º / 0.18 º / 0.23 º / 0.35 º |
| Sensing range | 0.1 m to 20 m |
| Working voltage | 12 V |
| Power consumption | 5 W |
| Ambient light | 80,000 lux |
| Temperature | -4 ºF to 140 ºF (-20 C to 60 ºC) |

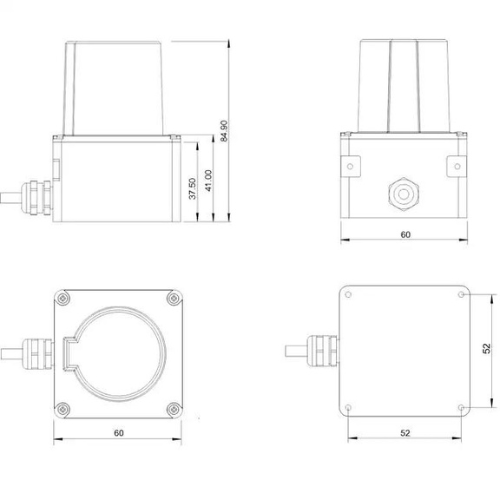

| Dimension | 2.3 in x 2.3 in x 3.5 in (60 mm x 60 mm x 84.9 mm) |
| Weight | 0.5 lb (250 gm) |
