Technical Specifications
| Light source | Infrared(905nm) |
| Laser safety level | Class I |
| Scanning angle range | 270° |
| Sampling frequency | 15 Hz to 25 Hz |
| Scanning angle resolution | 0.5° |
| Sensing range with 70% reflection） | 3.93 in to 196.85 in (0.1 m to 5 m) |
| Sensing range with 10% reflection） | 3.93 in to 78.74 in (0.1 m to 2 m) |
| Function | Obstacle avoidance |
| Working environment | Indoor |
| Response time | 50 Ms |
| Operating Voltage | DC (9 V to 28 V) |
| Power consumption | 5W |
| Enclosure rating | IP67 |
| Working temperature | 32 °F to 122 °F (0 ℃ to 50 ℃) |
| Weight | 0.55 lb (250 g) |

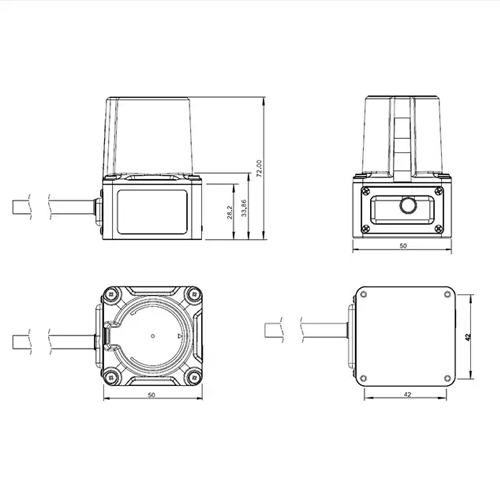

| Dimension | 2.36 in x 2.36 in x 2.83 in (60 mm × 60 mm × 72 mm) |
