Overview

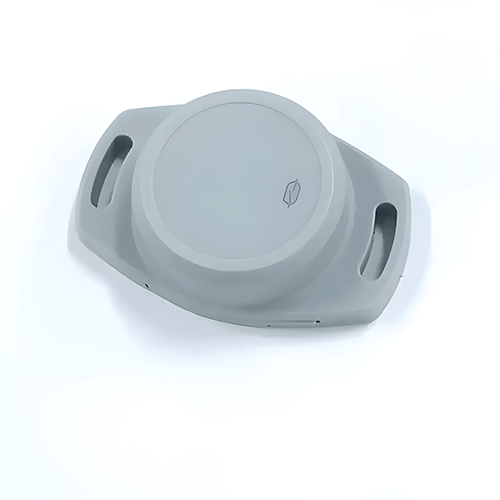

Specimen Track hall sensor bluetooth beacon is mainly used for assets tracking, indoor navigation, wayfinding, proximity marketing, etc. with its multi installation methods and robust Enclosure it can be deployed in factory, warehouse, building and other indoor or outdoor places.
Features
- Supports iBeacon, Eddy stone
- Hardware compatible with Bluetooth 5.1
- Integrated 3 axis accelerometer and magnetic sensors
- Accelerometer detects motion and movement
- Long lasting CR 2477 battery for up to 5 years
- Smartphone app for easy parameter configuration
Technical Specification
| Battery Model | CR 2477, Coin battery, 1 pc, 1000 mAh |
| Average Current | 21 uA to 28 uA, Tested at 0 dBm transmission power and 1000 ms Advertising Interval |
| Waterproof | IP 67 |
| Transmission Range | Up to 160 m, (+4 dBm) |
| Operating Temperature | -13 ℉ to 140 ℉ (-25 ºC to 60 ºC) |
| Storage Temperature | -4 ℉ to 158 ℉ (-20 °C to 70 °C) without battery, 50 ℉ to 77 ℉ (10 °C to 25 °C) with battery |

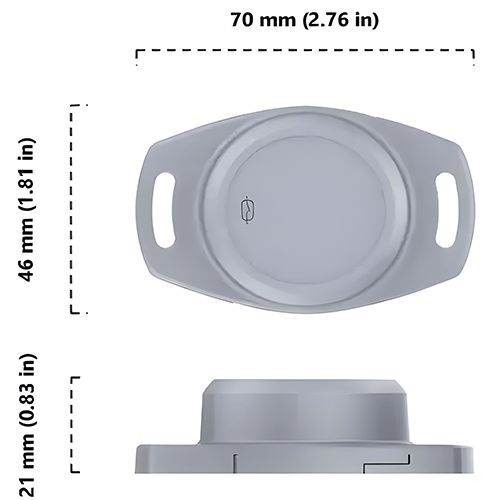

| Size | 2.75 in x 1.81 in x 0.82 in (70 mm x 46 mm x 21 mm) |
| Net Weight | 0.07 lb (33.5 g) with battery |
