Technical Specifications
| Configuration Method | Local USB / Remote configuration |
| Level Range | 0 m to 50m optional /0 to 1000 bar |
| Working Power | 3.6V,19Ah |
| Wake Up Mode | Buttons, timing, USB |
| Network | NB-IoT/GPRS/3G/4G/LoRa/LoRaWAN |
| Battery Life Once Per Hour | 5 years for waterproof models; 6 years for explosion- proof models |

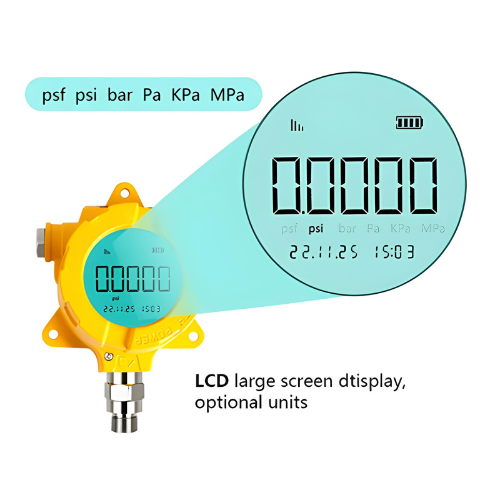

| Display | LCD screen |
| Antenna | External Antenna |
| Range | Pressure Range: -1 to 1000Bar optional Temperature Range: Normal: -328 Degree F to 392-degree F (-200 to 200°C); Split Type: -328-degree F to 1580-degree F (-200 C to 860°C); Others by customize. Level Range:0 to 1m – 50mlevel by customize |
| Power Consumption | ≤150mA. |
| Network Format | NB-IOT; 4G-GPRS (Global Support); LoRa 410000 KHz to 525000 KHz/863000 KHz to 928000 KHz (410MHz to 525MHz/863MHz to 928MHz) adjustable |
| Sampling Interval | 1 time/min |
| Upload Information | Pressure (temperature, level), battery level, signal, date and time, card num |
| Measurement Accuracy | 0.5% F.S |
| Temperature Effect | 0.015%F.S/°C |
| Protection Class | Waterproof IP66; explosion-proof: IP68, explosion-proof (Ex d IIB T6 Gb) |
| Operating Temperature | -22 °F to 158 °F (-30°C to 70 °C) |
| Size | 12.5 in x 12.5 in x 11.8 in (32 cm X32 cm X30 cm) |
| Weight | 11.02 lbs (5 kg) |
