Overview

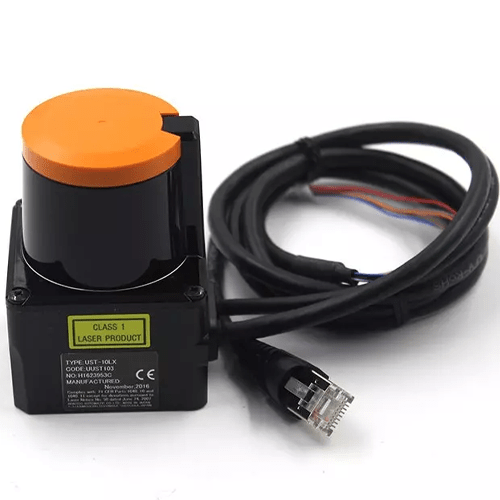

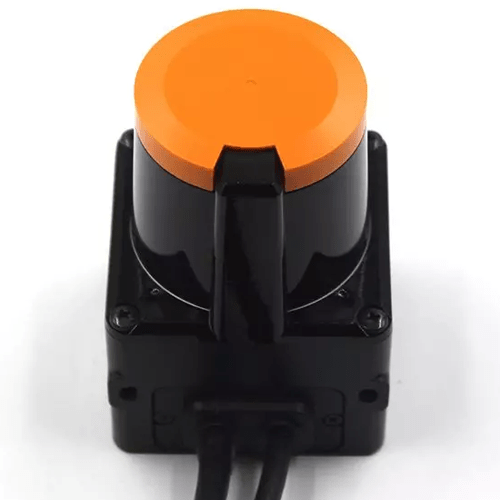

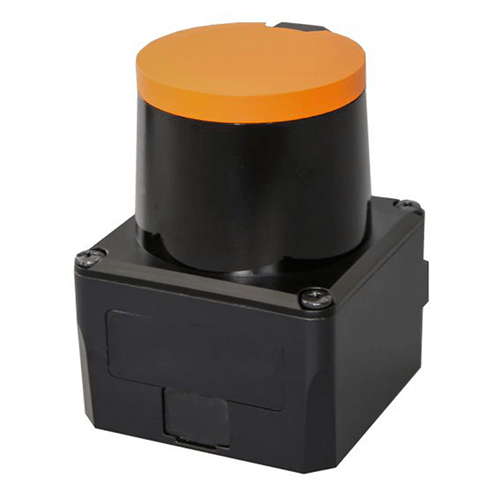

Specimen Track 2D high precision LiDAR sensor has a 32.81 ft, 270° measurement range, DC 12 V, 24 V input, 25 ms scan time, IP 65 protection, non-contact measurement. It can be used for high-speed motion robot obstacle avoidance and position recognition, high-precision, high-resolution, wide-field design provides a good environment recognition capability for autonomous navigation robots, compact design saves installation space, low weight and low power consumption.
Technical Specifications
| Voltage Supply | 10 VDC to 30 VDC ±10% |
| Resolution (Bits) | ±1.57 in (±40 mm) |
| Features | 196 ms², 10 times, X, Y, Z direction |
| Current – Supply (Max) | 0.3 A |
| Output Configuration | Power and I/O interface |
| Measuring Range | 0.25° (360°,1,440 steps) |
| Application | Detect obstacles |
| Maximum Measuring Distance | 98.43 ft (30 m) |
| Angle Resolution | 0.25° |
| Scan Cycle | 25 ms |
| Power Supply | 10V to 30 VDC ±10% |
| Laser Source | Semiconductor laser diode |
| Accuracy | ±1.57 in (±40 mm) |
| Scan Time | 25 ms/scan |
| Noise | < 25 dB |
