Laser Rangefinder Module with 2mm Accuracy, 10 Hz, 2.5-3.3V, Class ll – Specimen Track

This Laser Rangefinder Module offers 2 mm accuracy over a 0.03 to 20 m range, operates at 10 Hz frequency, Class II laser (620-690 nm), and 32 to 140 °F.

SKU: STRLDS-179 Category:

Technical Specifications

Accuracy2 mm
Measuring range1.1 in (0.03) m to 787. 4 in (20 m)
Frequency10 Hz
Laser Type620 nm to 690 nm
Voltage2.5V to 3.3V
Laser ClassClass II
Temperature32 ºF to 140 ºF (0 ºC to 40 ºC)

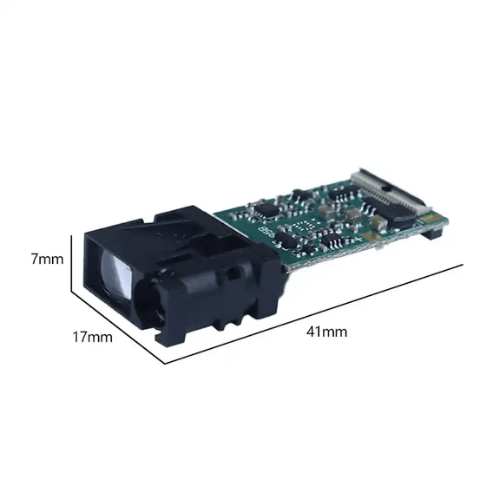

Size1.6 in x 0.6 in x 0.2 in (41 mm x 17 mm x 7mm)
