Overview

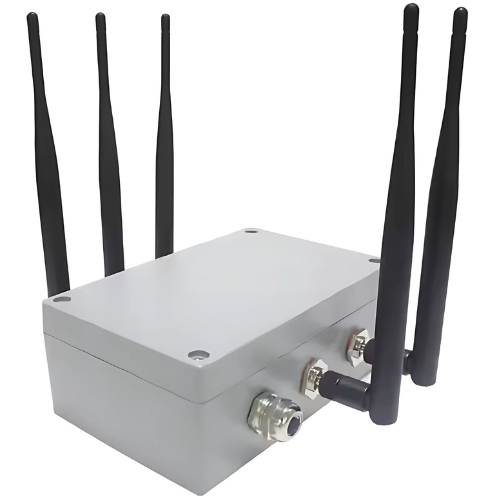

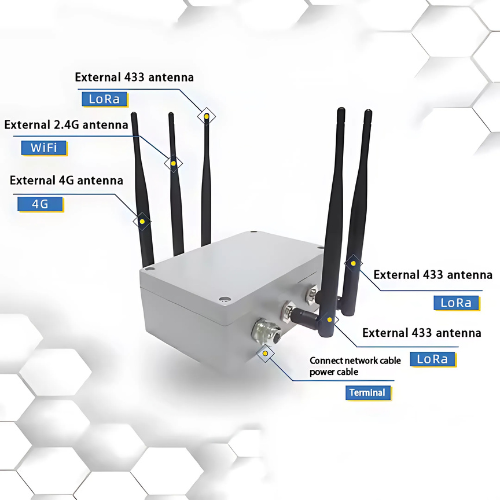

Specimen Track LoRa gateway, 4G multi-network, external antenna & multi-channel support is used for ultra long distance spread spectrum communication. Built-in three RF chips SX 1278 has a high sensitivity of -148 dBm and a power output of 20 dBm, long transmission distance and high reliability, it can send and receive data on three RF channels at the same time. Each channel can be set with different operating frequency and rate parameters without interfering with each other. Automatically select idle channels to send and receive data when working under high load. Under the premise of low cost, three channel communication with LoRa nodes is realized, and higher communication efficiency is realized.
Technical Specifications
| Antenna | External antenna |
| Frequency Range | LoRa frequency range 410 to 525 MHz |
| Networking Method | Ethernet or WIFI or 4G |
| Power Supply | DC 9 to 55 V (Advised 12 V, 1 A) or standard POE |
| Power Consumption | 7 W |
| Protection | IP 66 (The standard configuration is only suitable for indoor use, if you want to use it outdoor, please replace it with a waterproof antenna) |
| Shell Material | Aluminum |
| Indicator Light | Power supply, Wi-Fi, 4G, WAN port and Lora indicator light |
| Button | Hardware reset and factory reset button |
| 4 G | Support range mobile or Unicom or Telecom 2 or 3 or 4 G full Netcom SIM card support medium card Antenna external antenna |
| Lora | Protocol Ai Thinker private protocol Frequency range 410 MHz to 525 MHz Channel 3 channels Antenna external antenna |
| Operating Temperature | – 4 °F to 140 °F (- 20 °C to 60 °C) |
| Storage Environment | – 40 °F to 257 °F (- 40 °C to 125 °C) less than 90 % RH |
| Size | 6.30 in x 3.94 in x 2.36 in (16 cm x 10 cm x 6 cm) |
