Overview

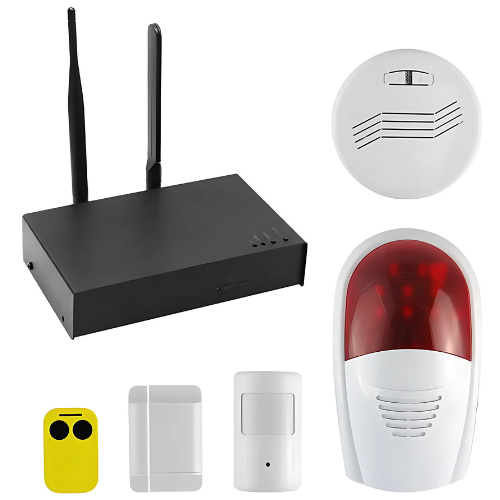

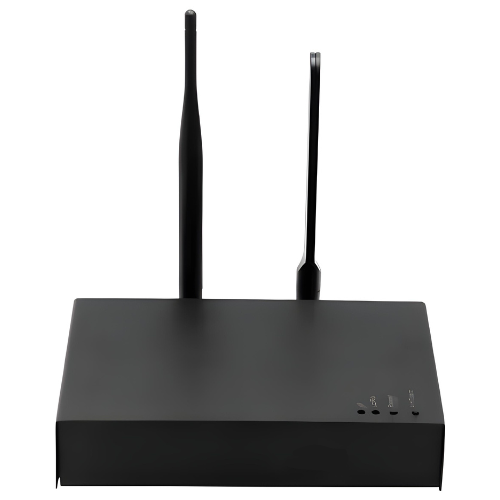

Specimen Track LoRa gateway security system for smart home IoT with 4G LTE connectivity uses a global M2M communication module, combined with LoRa long-distance wireless transmission technology to create an IoT APP security system application. The terminal node of LoRa may be various devices, such as door magnetic sensors, infrared human detection Alarms, smoke alarms, sound and light alarms, etc. The SIM card can cover the LTE networks of major global operators, reaching a downlink rate of 150Mbps and an uplink rate of 50Mbps, while being backward compatible with the existing 3G and 2G networks to ensure network communication even in remote areas.
Features
- Support LoRaWAN latest protocol stack LoRaWAN1.0.2, LoRaWAN1.0.3, LoRaWAN1.1
- Compatible with other LoRa end-devices
- Support wired network connection, LTE available,4G version, WiFi, support WAN/4G network connection switch automatically
- LTE version optional for China, Europe, US respectively. Chinese version suitable for China mobile, China Unicom, China Telecom
- Support 4G network reconnection
- Support status check on WEB and modify configuration
- Support firewall protection and DNS parsing rebinding protection
- Support TF card log storage
- Support anti-theft key design
Technical Specifications
| Voltage | 13 V DC |
| Current | Less than 1 A |
| Network Standard | Full Netcom 4G network |
| LORA Frequency | 490 MHz |
| Sub Device Quantity | Less than 250 PCS |
| Remote Control Quantity | Less than 5 PCS |
| Sim Size | 0.984 in × 0.591 in × 0.0315 in (2.5 cm ×1.5 cm ×0.08 cm) (Standard) |
