Overview

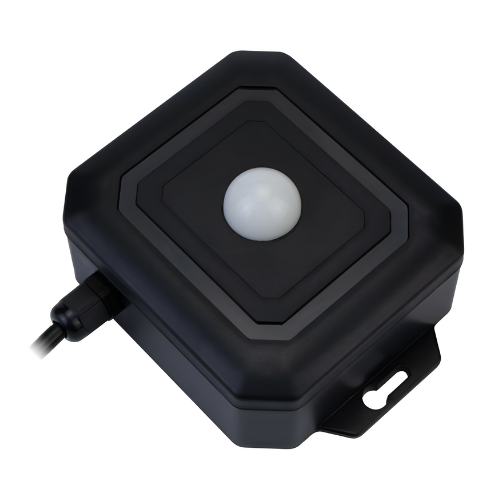

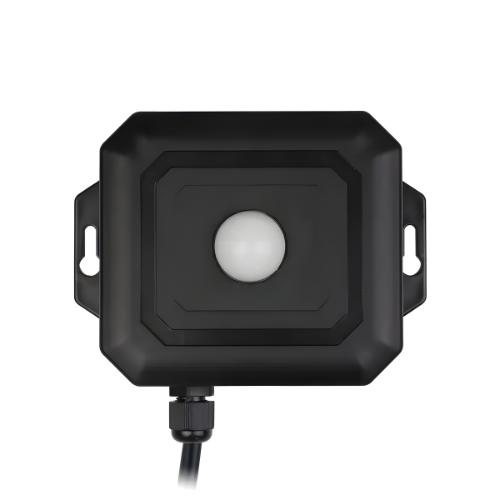

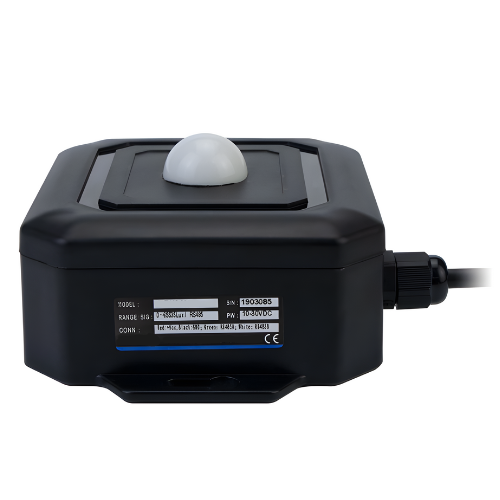

Specimen Track LORA tester with wall-mounted installation, utilizes high-precision imported light sensors, ensuring accurate and stable measurements. It excels in long-distance data transmission and robust anti-interference capabilities, employing GPRS, LoRa, or NB-IoT for data upload to the cloud platform. This versatile device finds applications in indoor and outdoor environmental monitoring, agricultural greenhouses, and flower cultivation, catering to light intensity monitoring needs.
Features
- High-Quality Photosensors
- Moisture-Proof Design
- Superior Performance
- Wireless Transmission
Technical Specifications
| Light Intensity Range | 0 lux to 65535 Lux, 0 million lux to 20 million Lux |
| Body Working Temperature | -20 °F to 140 °F (-29 °C to 60 °C) 0% RH to 80% RH |
| Transfer Method | GPRS / LoRa / NB-IoT |
| Sampling Frequency | GPRS / NB-IoT: 10 s to 3600 s |
| Operating Voltage | 3.6 V Lithium battery / external supply 10 V DC to 0 V DC |
| Upload Frequency | 1 min to -1440 mins |
| Precision | Light Intensity: ±7% |
| Protection Level | IP 65 |
| Long-Term Stability | Light Intensity: ≤5% per year |
| Battery Capacity | 8000 mAh |
| Response Time | ≤0.1 seconds |
| Protocol | GPRS / NB-IoT: TCP / UDP / MQTT / Coap (multiple protocols are optional) |
| Electrical Connections | LoRa: Proprietary Protocol / LoRaWAN (Class A, OTAA mode activation) |
