Name: LoRaWAN BLE 5.0 GNSS Wearable Smart Office Badge Tracker - Specimen Track -
SKU: STRILED-214

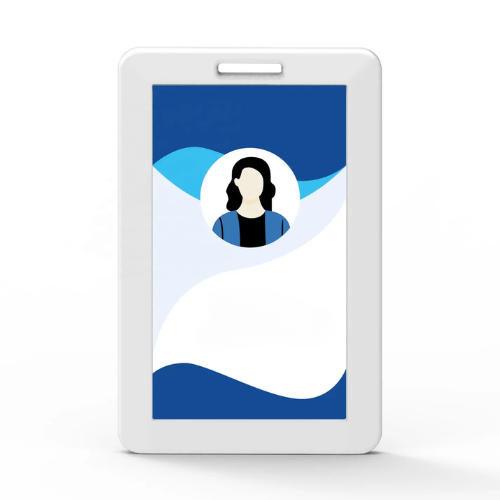

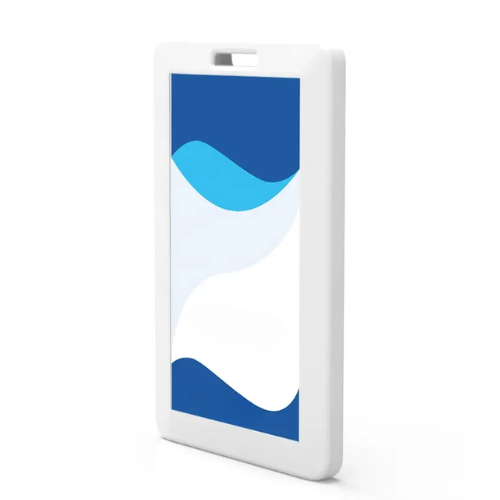

LoRaWAN BLE 5.0 GNSS Wearable Smart Office Badge Tracker – Specimen Track

Bluetooth 5.0 and LoRaWAN tracker with GNSS, AES128 encryption, and adjustable frequencies for accurate indoor and outdoor asset tracking.

SKU: STRILED-214 Category: LoRaWAN

Features

Technical Specifications

Chipset	SX1276
Bluetooth Protocol	Bluetooth 5.0
LoRaWAN Protocol	LoRaWAN 1.0.2 B
Lora Distance	> 0.6 mi (1 km) in urban area
Lora Sensitivity	– 139 dBm at SF12, BW 125 kHz, 434 MHz or 470 MHz – 137 dBm at SF12, BW 125 kHz, 868 MHz or 915 MHz
Bluetooth Distance	82 ft (25 m) sight distance
Indoor Tracking	Bluetooth, 3 ft to 9.8 ft (1 m to 3 m) accuracy
Outdoor Tracking	GNSS, 8.2 ft (2.5 m) accuracy
Operating Current	20 μA to 139 mA
G-Sensor	Supported
Encryption	AES 128
Low Battery Alert	Supported
Vibration Intensity Adjustment	Supported
Operating Mode	GNSS coordinates acquisition Frequency adjustable LoRa communication frequency adjustable Automatic BLE and GNSS tracking switching
Operating Temperature	– 14 °F to 140 °F (- 10 °C to 60 °C)
