Overview

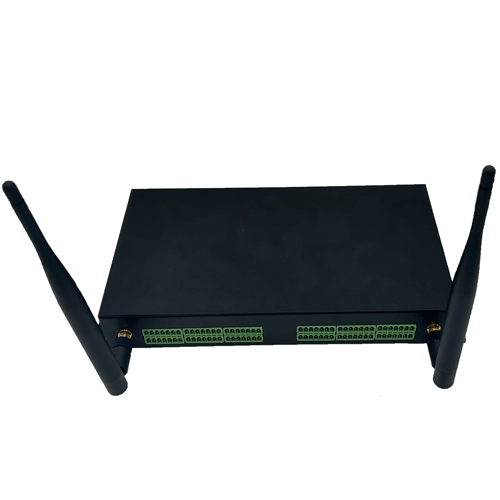

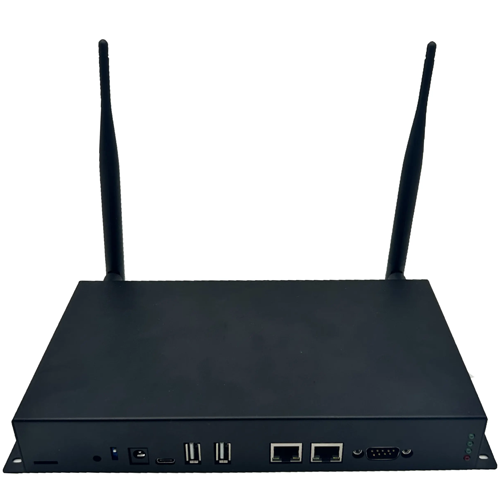

Specimen Track LoRaWAN Compact Gateway: Industrial Grade Connectivity – Wi-Fi, Bluetooth features a high-performance industrial-grade processor and multiple connectivity options such as Ethernet, CAN bus, RS232, and RS485. This device is designed for industrial applications, and it can also serve as a gateway for IoT solutions, supporting Wi-Fi, Bluetooth, and optional 4G and 5G connections. It operates on the Openwork Linux system, making it highly flexible for industrial and IoT integration.
Features
- Industrial-grade processor for IoT
- Supports Ethernet, CAN bus, RS232, RS485
- Wi-Fi, Bluetooth, optional 4G and 5G
- Openwork Linux system
- Relay output and multiple interfaces
Technical Specifications
| Processor | MT7688AN 580 MHz |
| Memory | DDR2 128 MB |
| Storage | 32 MB Embedded |
| Ethernet Ports | 2 x 10 M or 100 M Ethernet (RJ45) |
| USB Ports | 2 x Host 2.0; 1 x debugging interface |
| Serial Interfaces | 2 x RS-232, 1 x TTL UART, 1 x RS-485 |
| CAN Interface | 1 x CAN |
| Wi-Fi/Bluetooth | 802.11 a, b, g, n OR BT 4.2 |
| Power Input | 12 V, 2 A |
| Power Consumption | 4 W typical; 16 W maximum |
| Humidity | 5 % RH to 95 % RH (non-condensing) |
| Operating Temperature | -40 °F to 158 °F (-40 °C to 70 °C) |
| Storage Temperature | -40 °F to 185 °F (-40 °C to 85 °C) |
| Product Size | 9.45 in x 5.12 in x 1.57 in (24 cm x 13 cm x 4 cm) |
