Overview

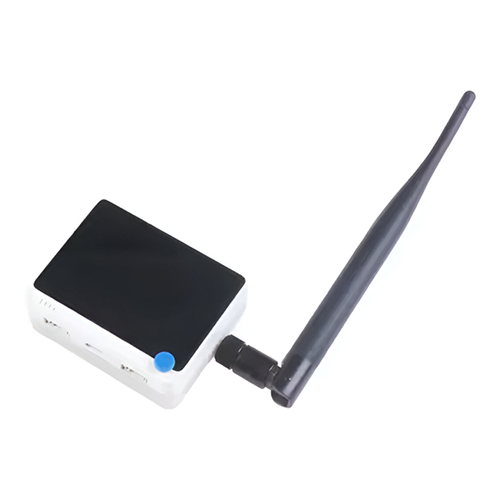

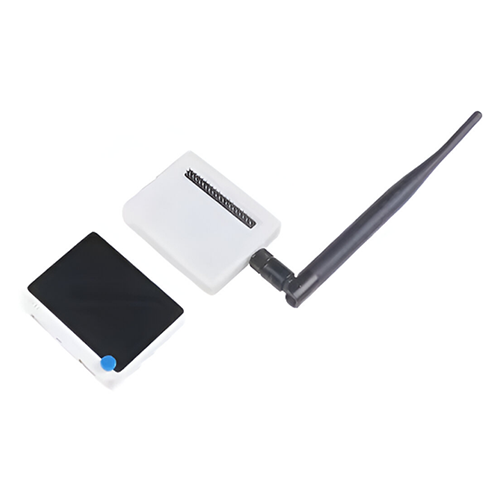

Specimen Track’s LoRaWAN field tester kit for helium network monitoring is a plug-and-play and all-in-one LongFi network monitor for Helium network. It will help you particularly know how many Hotspots around can be touched for a given position, enrich the network mappers to know each other and share the real network coverage.
Features
- Ready to go
- Compact size
- Directly display network
- Monitor the LongFi network
Technical Specifications
| Core Processor | ARM Cortex M4F running at 120 MHz |
| Memory | 4 MB external flash, 192 KB RAM |
| Maximum Speed | 200 MHz |
| External Flash | 4 MB |
| Resolution | 320 x 240 |
| Display Size | 2.4 in |
| Drive IC | ILI9341 |
| KM4 CPU | ARM Cortex M4F at 200 MHz |
| KM0 CPU | ARM Cortex M0 |
| Wi-Fi | 802.11 a or b or g or n 1×1, dual band 2.4 GHz and 5 GHz |
| BLE5.0 | Support |
| Accelerometer | LIS3DHTR |
| Microphone | 1.0 V to 10 V, – 42 dB |
| Speaker | ≥ 78 dB at 10 cm 4000 Hz |
| Light Sensor | 400 nm to 1050 nm |
| Infrared Emitter | 940 nm |
| MicroSD Card Slot | Maximum 16 GB |
| GPIO | 40-PIN (Raspberry Pi Compatible) |
| Supported Protocol | SPI, I2C, I2S, ADC, DAC, PWM, UART (Serial) |
| Grove | 2 (multifunction), for digital, analog, I2C, and PWM |
| FPC | 20-Pins |
| USB Type-C | Power and USB-OTG |
| Operation Interface | 5-way switch, power or reset switch, user-defined button x 3 |
| Mounting | Built-in magnets and two mounting holes |
| Materials | 3D printing with ABS and PC |
| Software Support | Arduino, MicroPython, ArduPy, AT Firmware, Visual Studio Code, CircuitPython |
| Frequency | EU 868 MHz or US 915 MHz or AU 915 MHz or AS 923 MHz or KR 920 MHz or IN 865 MHz |
| Protocol | LoRaWAN |
| Sensitivity | – 116.5 dBm to – 136 dBm |
| Modulation | LoRa, (G)FSK, (G)MSK, BPSK |
| Receiving Bands | GPS L1 or Galileo E1 C or A: 1575.42 MHz GLONASS L1 C or A: 1602.5625 MHz BeiDou B1 C or A: 1561.098 MHz |
| Channel | 33 tracking channels 99 acquisition channels 210 PRN channels |
| Sensitivity | Acquisition: – 148 dBm Tracking: – 165 dBm Reacquisition: – 160 dBm |
| Interfaces | Wio Terminal 40-pin (2 x 20 male headers) |
| Operating Temperature | – 40 °F to 185 °F (- 40 °C to 85 °C) |
| Dimensions | 2.8 in x 2.2 in x 0.5 in (72 mm x 57 mm x 12 mm) |
