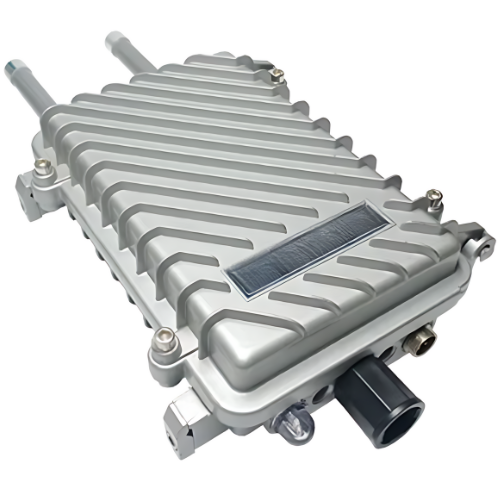

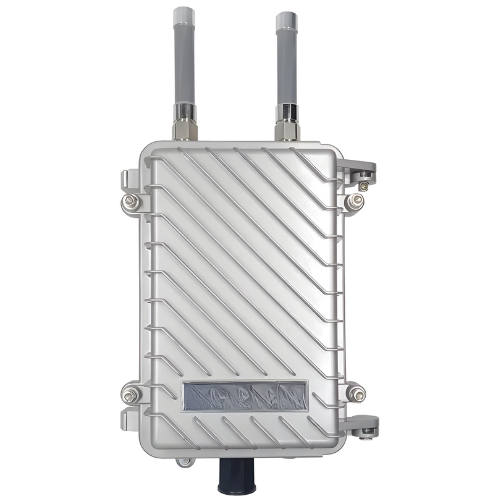

LoRaWAN Gateway with Ethernet, WiFi, GPS, and 3G/4G Support – Specimen Track

LoRaWAN Gateway features industrial design, GPS, IP67 waterproofing, and supports 4G/WiFi for reliable data forwarding in IoT applications.

SKU: STRLRG-142 Category:

  Features

  • Industrial design
  • Encrypted connection
  • Linux OS
  • GPS support
  • IP67 waterproof
  • 4G/WiFi access
  • Easy to use



Technical Specifications

Rated Power Consumption 5 W
LTE 4G Frequency Band North America：
LTE-TDD B38/B40/B41
LTE-FDD B1/B3/B5/B7/B8/B20
UMTS/HSPA+ B1/B5/B8
GSM/GPRS/EDGE B3/B8
Network Access Interface Ethernet: RJ-45，WiFi，LTE-4G
LoRa Transmit Power 27dBm（Max）
LoRa Communication Rate 292bps ~ 5.4kbps，Support bandwidth:125KHz ~ 500KHz，Spreading factor supported:SF7 ~ SF12
