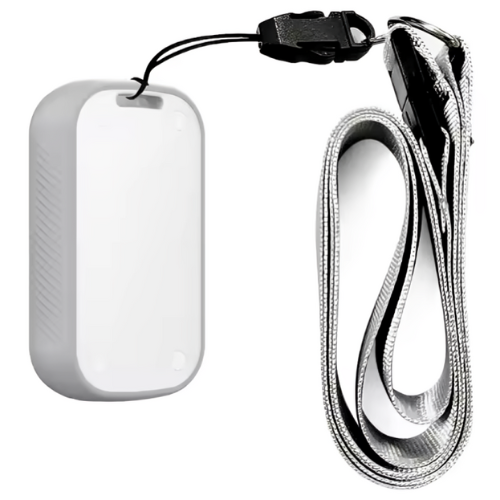

LoRaWAN GPS Panic Button Tag with BLE Vibration Tracking – Specimen Track

This device features GPS outdoor positioning and BLE indoor geo-location, along with a built-in vibration motor for alerts and RFID functionality. It supports LoRaWAN V1.0.3 with a communication range of up to 7 km, and is equipped with a rechargeable 540 mAh battery.

SKU: STROLED-206 Category:

Features

  • Support GPS outdoor
  • BLE indoor geo-location
  • Built-in vibration motor for alert
  • Built-in RFID
  • Low battery indicator



Technical Specifications

Lora Protocol Lora Wan Standard V1.0.3
Lora Chipset SX1262
MCU Nordic NRF52832
Lora Frequency US 915 MHz or AU 915 MHz or AS 923 MHz or EU 868 MHz or IN 865 MHz or EU 868 MHz or RU 864 MHz or KR 920 MHz or CN 470 MHz
Lora Communication Distance Up to 4 mi (7 km) (In Urban Open Space)
Tx Power Max 20 dBm
Sensitivity – 140 dBm at SF12 300 bps
GPS Positioning Accuracy 8.2 ft (2.5 m) CEP
Bluetooth® (BLE) V4.2
BLE Communication Distance Up to 164 ft (50 m) in Free Space
Shell Material ABS or PC and TPU (TPU is used for Button and Frame)
Battery Characteristics 540 mA Type C Rechargeable Battery
Changer Time 2.5 hr at 5 V, 1 A
Charging Temperature 32 °F to 113 °F (0 °C to 45 °C)
Operating Temperature – 4 °F to 140 °F (- 20 °C to 60 °C)
Net Weight 1.7 oz (48 g) (± 0.07 oz) (± 2 g)
Dimensions 2.9 in x 1.6 in x 0.7 in (73 mm x 40 mm x 17 mm)
