Overview

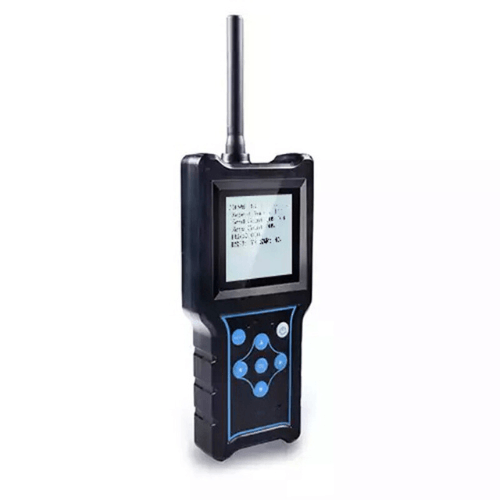

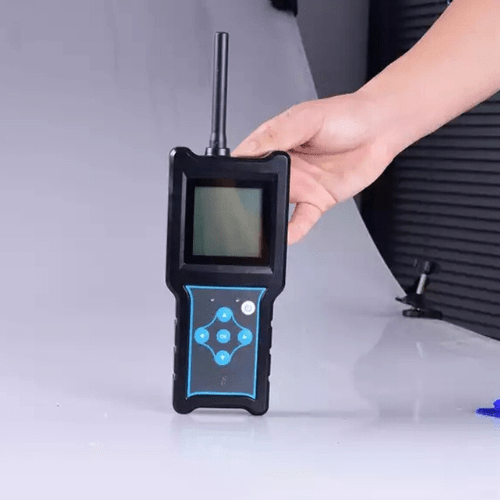

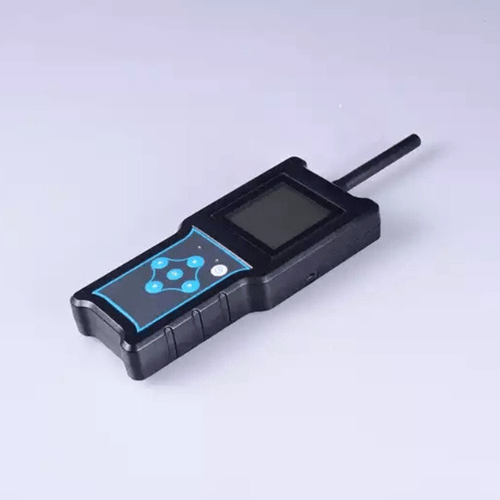

Specimen Track GPS tester healthcare connects the gateway via OTAA to join the network. It has an LCD screen. It can test the Uplink and Downstream packet loss rate. Meanwhile users can get RSSI and SNR for gateway transmission. Users can turn on the GPS to display the latitude and longitude coordinates of the device, and check the LoRoWAN TM CLASS type and the firmware version of the LoRa tester.
Features
- Support LoRa wireless communication
- Support EU868/US915/AS923/AU915
- Support GPS locating with the accuracy of within 16.40 ft (5 m)
- Built-in lithium battery to support the system for 36 h
- LCD screen to support text interface display
- Full plastic shell structure design
- Support real-time communication with gateway
- Support RSSI and SNR of gateway transmission
Technical Specifications
| CPU | ARM 32 bit-cortex-M3 Kernel | Main frequency: 32MHz |
| Memory | 128 KB Flash | 16 KB RAM | 4 KB EEPROM |
| Sensor | Built-in GPS |
| Buzzer | Built-in |
| LED indicator | 1x power indicator, red 1x charging indicator, green |
| Antenna | External LoRa antenna, Built-in GPS ceramic antenna |
| Data rate | 300 bps to 5.4 kbs |
| Working frequency | EU 868 ; US 915 ; AS 923 |
| Protocol | LoRaWANTM |
| Maximum transmitted power | 17 dbm |
| Rx sensitivity | -140 dBm |
| Overall power consumption | 110 mW |
| Battery capacity | 3.7 V / 3500 mAh |
| Working temperature | -4 ℉ to 158 ℉ (-20 ℃ to 70 ℃) |
| Working humidity | 10% RH to 90% RH |
| Power supply | Built-in rechargeable lithium battery |
| Input voltage | DC 3.7 V |
| Transmit status current | 150 mA |
| IP grade | IP 65 |
| Dimension | 7.48 in x 3.39 in x 1.18 in (190 mm x 86 mm x 30 mm) |
