Technical Specifications
| Operating System | Open Source Embedded Linux system |
| Management | Managed by Web GUI, SSH via LAN or WiFi |
| LoRaWAN Support | Support Semtech UDP packet forwarder |
| Connectivity | Support LoRaWAN Station Connection, Cellular Failover connection (optional), Direct Communication to LoRaWAN ABP Node |
| LoRaWAN Packet Filtering | Far Seeing LED indicator |
| Positioning | Built-in GPS module for location & timing |

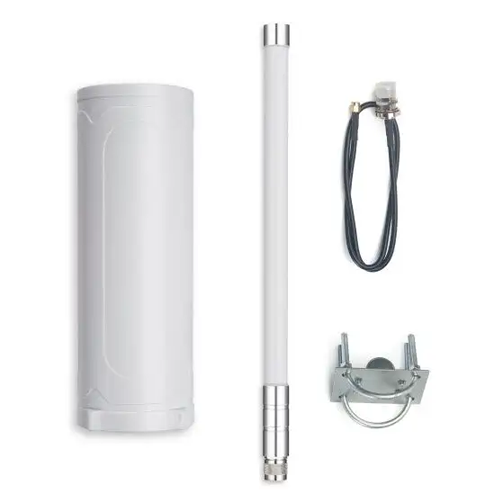

| Antenna | External fiber glass antenna |
| Configuration | Auto-Provision |
| Monitoring | Remote Monitoring |
| Protection | 802.3af PoE, IP65, Lightning Protection |
| Power Consumption | 12V, 300 mA to 500mA |
| Sensitivity | Up to -140 dBm sensitivity with SX1250 Tx/Rx front-end |
| Application | Smart Buildings & Home Automation, Logistics and Supply Chain Management, Smart Metering, Smart Agriculture, Smart Cities, Smart Factory |
| CW Interference Rejection | 70 dB CW interferer rejection at 1 MHz offset |
| Negative SNR Operation | Able to operate with negative SNR, CCR up to 9dB |
| Demodulation | Emulates 49 x LoRa demodulators and 1 x (G)FSK demodulator |
| Radio Front-End | Dual digital TX & RX radio front-end interfaces |
| Demodulation Paths | 10 programmable parallel demodulation paths |
| Data Rate Adaptation | Dynamic data-rate (DDR) adaptation |
| Antenna Diversity | True antenna diversity or simultaneous dual-band operation |
| Interface |
|
