Overview
Specimen Track LoRaWAN PIR motion sensor with extended range and low power is a passive infrared motion sensor that can detect infrared radiation emitted by humans and objects, and thus monitor any status changes such as intrusion or movement with high precision. Utilizing advanced LoRaWAN connectivity, the sensor ensures reliable signal transmission over long distances, making it well-suited for diverse scenarios like office buildings, shopping malls, industrial parks, warehouses, and factories. It offers flexible use due to the maximum 33 ft (10 m) detecting distance and 90° detecting angle. Supported by low-power LoRaWAN technology and a powerful 4000 mAh battery, this device provides uninterrupted operation for up to 2 years with minimized maintenance.
Features
- LoRaWAN based
- Extended range
- Ultra-low power
- Deep indoor penetration
- Detect farther than ever
- Accurate presence and movement detection
Technical Specifications
| Operating Frequency | Multiple bands optional: EU 868 MHz or US 915 MHz or AS 923 MHz or KR 923 MHz or IN 865 MHz, etc. |
| Communication Protocol | Standard LoRaWAN |
| Communication Distance | 1.24 mi (> 2 km) (in open environment) |
| Sensor | Passive infrared |

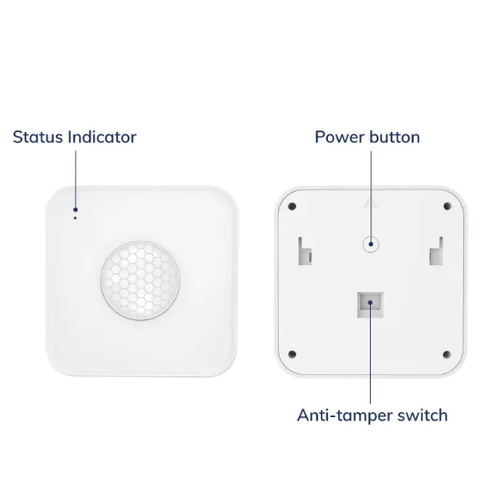

| Anti-Disassembly Switch | Yes |
| Button | Power on or off |
| Battery | 4000 mAh |
| Detection Range | 26 ft to 33 ft (8 m to 10 m) |
| Operating Mode | Class A |
| Antenna | Built-in antenna |
