Overview

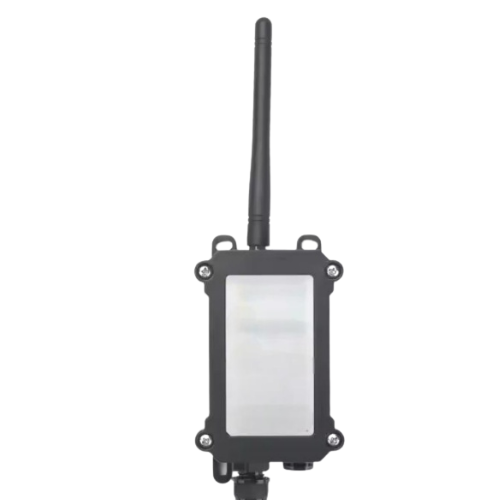

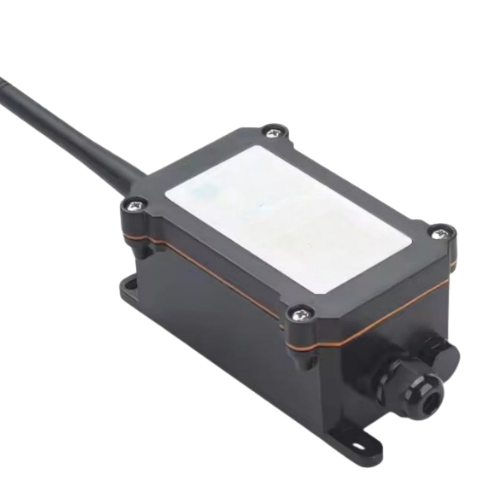

Specimen Track’s LoRaWAN RS485 UART Converter with IP67 and Low Power is a RS485 or UART to LoRaWAN converter for Internet of Things solutions. It allows connection to RS485 or UART sensors and can be configured to periodically read sensor data and upload via the LoRaWAN network to an IoT server. This device can interface with RS485 sensors, 3.3V or 5V UART sensors, or interrupt sensors. It provides 3.3V and 5V outputs to power external sensors, with controllable voltages to minimize total power consumption. This product is IP67 waterproof and powered by an 8500mAh Li-SOCI2 battery or solar plus Li-ion battery, designed for long-term use over several years.
Technical Specifications
| Type | LoRaWAN Converter |
| Technology | LoRaWAN v1.0.3 Class A |
| Applications | Wireless Alarm and Security Systems, Home and Building Automation, Automated Meter Reading, Industrial Monitoring and Control, Long-range Irrigation Systems |
| Frequency | CN470, EU433, KR920, US915, EU868, AS923, AU915, IN865 |
| Power Supply | 5V or 12V; 8500 mAh Li-SOCI2 battery |
| Power Consumption | Ultra low power consumption |
| Interfaces | RS485 for RS485/Modbus sensor; 3.3V or 5V UART interface for sensor |
| Ingress Protection | IP66 Waterproof Enclosure |
| Operating Temperature | -40 °F to +185 °F (-40 °C to +85 °C) |
