Overview

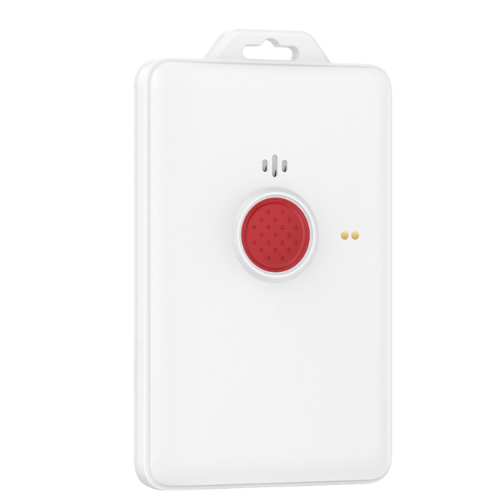

Specimen Track’s LoRaWAN Smart Badge with Indoor & Outdoor Positioning and GPS is a smart badge that combines LoRaWAN network transmission with BLE, WiFi, and GPS positioning technologies. It allows for reliable indoor and outdoor positioning, making it ideal for ensuring staff safety, emergency alarm capabilities, and effective personnel management.
Technical Specifications
| Power Source | Rechargeable battery |
| Power Supply | 1500mAh Rechargeable battery |
| Communication Interface | Bluetooth, WiFi, LoRa |
| LoRa Protocol | LoRaWAN V1.0.3 |
| LoRa Frequency | EU868, AU915, US915, AS923, IN865, KR920, EU433, CN470, CN779, RU86, AS923-1, AS923-2, AS923-3, AS923-4 |
| GPS | Traditional GPS and Semtech LoRa Cloud |
| Bluetooth | BLE V5.0 |
| Tx Power | Max 21 dBm |
| Sensitivity | -137 dBm@SF12 300bps |
| IP Rating | IP67 |
| Operating Temperature | -4 °F to 140 °F (-20 °C to +60 °C) |
| Operating Humidity | 5% to 95% (No condensation) |
| Alarm Status Indication | Vibration/buzzer/LED indicator |
| Weight | 2.47 oz (70 g) |
| Size | 3.80 in x 2.43 in x 0.39 in (96.5 mm x 61.6 mm x 10 mm) / 4.07 in x 2.69 in x 0.46 in (103.3 mm x 68.4 mm x 11.8 mm, includes lugs) |
