Overview

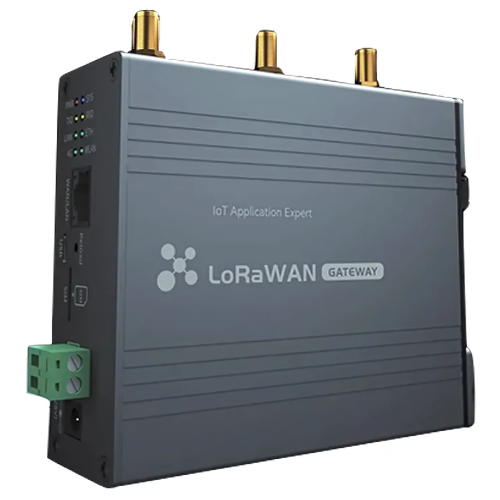

LoRaWAN Smart Gateway for Agriculture & Industry with Multi-Network Support – Specimen Track: seamless connectivity in agriculture and industry supports the standard LoRaWAN protocol providing battery-powered wireless devices with regional, national or global networks. LoRaWAN enables seamless interoperability of smart devices and brings new benefits to the IoT field of users, developers and enterprises in the domain having free operation rights.
Features
- Supports 1 wired WAN port, switchable LAN port
- Support LoRaWAN gateway
- Support LED status monitoring (display power PWR, LINK, ETH, WLAN, LoRaRX, LoRaTX)
- Support Web platform management and configuration method;
- Restore factory settings with one click;
- Wired network ports all support 10 or 100Mbps rate;
- Support wired and wireless simultaneous online and multi-network intelligent switching
- Support firmware upgrade and firmware configuration backup function;
- Firewall, NAT, DMZ host, access control black- and whitelist, IP speed limit
- QOS and traffic services can limit the speed according to the interface;
- Support VPN client
- Supports load balancing multi-network port flow control settings, with
Technical Specifications
| TDD-LTE | Down Link: 130 Mbps, Up Link: 35 Mbps |
| FDD-LTE | Down Link: 150 Mbps, Up Link: 50 Mbps |
| WCDMA | Down Link: 384 kbps, Up Link: 384 kbps |
| DC-HSDPA | Down Link: 42 Mbps, Up Link: 5.76 Mbps |
| GPRS | Down Link: 107 kbps, Up Link: 85.6 kbps |
| Operating Voltage | 8 V to 28 V |
| Working Current | 120 mA at 12 V |
| Working Humidity | 5 % RH to 95 % RH |
| Storage Humidity | 1 % RH to 95 % RH |
| Operating Temperature | – 40 °F to 185 °F (- 40 °C to +85 °C) |
| Storage Temperature | – 40 °F to 185 °F (- 40 °C to +85 °C) |
| Product Size | 4.33 in x 4.13 in x 1.61 in (11 cm x 10.5 cm x 4.1 cm) |
| Product Weight | 14.82 ± 0.17 oz (420 ± 5 g) |
