Overview

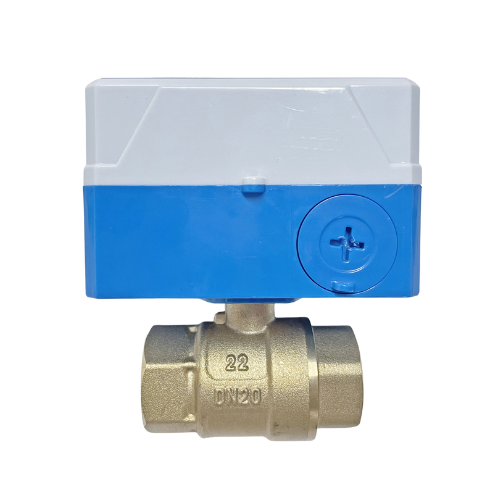

Specimen Track’s LoRaWAN Smart Remote-Control Valve for Water and Gas Pipelines provides remote valve control for water and gas applications. This device uses LoRa wireless technology to achieve excellent coverage and easy installation. It can operate as an independent valve or as part of a linked valve system, controlling gas or liquid flow in pipelines. This product works in LoRa Class B and Class C modes, performing switching actions when receiving control commands and reporting any abnormalities, such as half valve or non-response errors, to the server. The device also displays overall power supply, working status codes, and valve status on the screen.
Features
- measurement function
- historical data store locally
- Main battery capacity level indicator
- Power supply
- LoRaWAN downlink set/inquire
Technical Specifications
| Type | Ball valve |
| Valve Type | Gate valve |
| Material | Brass |
| Connection Way | Threaded connection |
| Installation Way | Horizontal or vertical |
| Working Pressure | ≤2.6 MPa |
| Environmental Type | B |
| Electromagnetic Environment | E1 |
| Environmental Temperature | 32.2°F to 194°F (0.1°C to 90°C) |
| Size | DN15, DN20, DN25 |
