Overview

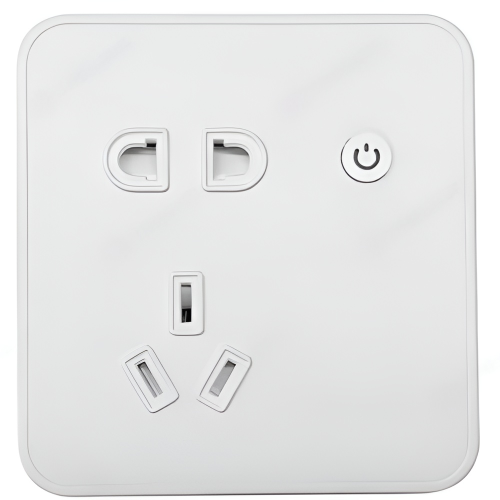

Specimen Track’s LoRaWAN smart wi-fi power socket with overload protection is a simple and nice-looking 86 wall-mounted smart socket panel. The product integrates power on or off control and electric statistics functions. Realize intelligent management of electronic appliances and scientific use of electricity. It has rich power in on or off control modes. In addition to local key control, it supports wireless LoRaWAN networking communication to realize remote control. It can be combined with the LoRaWAN gateway and the energy supervision platform to realize scene control by linking with other intelligent devices. Suitable for installation into the wall. It can be widely used in smart home offices, campuses, and other application scenarios.
Features
- Flexible control mode
- Multicast function
- Power statistics
- Overload protection
- Long communication distance
- Easy to use
Technical Specifications
| Socket Specification | National Standard 5-hole 10 A or 3-hole 16 A (Optional),
with Safety Door |
| Input Voltage | AC 100 V to 250 V, 50 Hz to 60 Hz |
| Rated Load | 10 A, 2500 W or 16 A, 4000 W |
| Power on or off Control | Support Remote Control or Scene Linkage or Delayed Task or Local Control, Etc |
| Multicast Function | Support 4 Multicast Groups |
| Electricity Parameter Collection | Voltage (V), Current (mA), Power (W), Power Factor (%),
Power Consumption (kWh) |
| Protection Mechanism | Overcurrent Protection or Alarm |
| Intelligent locking | Support Locking Local Switch Button |
| Automatic Recovery | Support to Keep The Last Working State After Restart |
| Communication Protocol | Standard LoRaWAN Protocol |
| Operating Frequency | CN 470 MHz, RU 864 MHz, IN 865 MHz, EU 868 MHz, US or AU 915 MHz, KR 920 MHz, AS 923 MHz or 921 MHz or 922 MHz or 923 MHz or 924 MHz, custom channels |
| Transmit Frequency | 19 dBm |
| Receiving Sensitivity | – 137 dBm at 300 bps |
| Net Access or Working Mode | OTAA or ABP Class C |
| Switch Button | One |
| Indicator | One. Green |
| Configuration Method | NFC (Mobile App) |
| Protection Grade | IP20 |
| Material | PC and ABS |
| Installation Method | Wall-mounted |
| Working Humidity | 10 % to 90 % (no condensation) |
| Working Temperature | – 4 °F to 140 °F (- 20 °C to 60 °C) |
| Size | 3.4 in x 3.5 in x 1.7 in (86 mm × 90 mm × 42 mm) |
