Overview

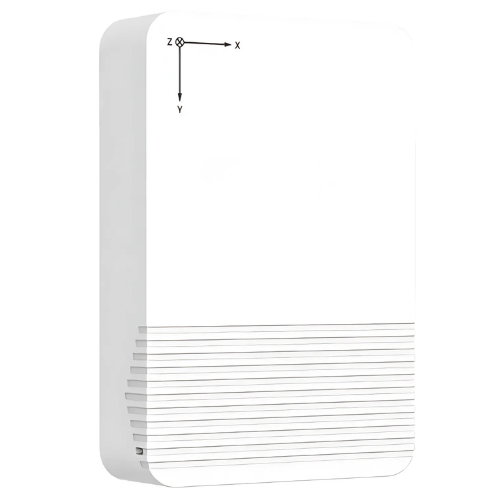

Specimen Track LoRaWAN tilt sensor with MEMS accelerometer & IP67 is a LoRaWAN tilt sensor mainly for angle measurement and asset movement detection. With a compact size and 3-axis accelerometer, it can be installed on objects easily to measure its X, Y, Z tilt angles. In addition, this device supports customizing the initial position to detect movement based on angle changes and send threshold alarms. Compliant with the LoRaWAN gateway and IoT Cloud solution, users can know the angles and tilt threshold alarms in real-time via browser or mobile app remotely. It can be widely used in tree monitoring, pole lean detection, landslide monitoring, etc.
Features
- Built-in MEMS Accelerometer Sensor
- Flexible Threshold Condition Settings
- NFC For One Touch Configuration
- IP67 Waterproof
- Anti-theft Design
Technical Specifications
| Material | ABS |
| Protocol | LoRaWAN Standard |
| Frequency | CN 470 MHz, IN 865 MHz, RU 864 MHz, EU 868 MHz, US 915 MHz, AU 915 MHz, KR 920 MHz, AS 923 MHz -1 and 2 and 3 and 4 |
| Tx Power | 16 dBm (868 MHz) or 22 dBm (915 MHz) or 19 dBm (470 MHz) |
| Sensitivity | – 137 dBm at 300bps |
| Mode | OTAA, ABP Class A |
| Axis | X, Y, Z |
| Range | – 90 ° to 90 ° |
| Accuracy | ± 1 ° |
| Resolution | 0.01 ° |
| Configuration | NFC Configuration via Mobile App |
| Button | 1 × Reset Button (Internal) |
| Power Supply | 2 × 2700 mAh ER17505 Li-SOCl2 Batteries |
| Ingress Protection | IP67 |
| Relative Humidity | 95 % (non-condensing) |
| Operating Temperature | – 22 °F to 140 °F (- 30 °C to 60 °C) |
| Size | 4.37 in x 2.44 in x 1.30 in (111 mm x 62 mm x 33 mm) |
