Overview

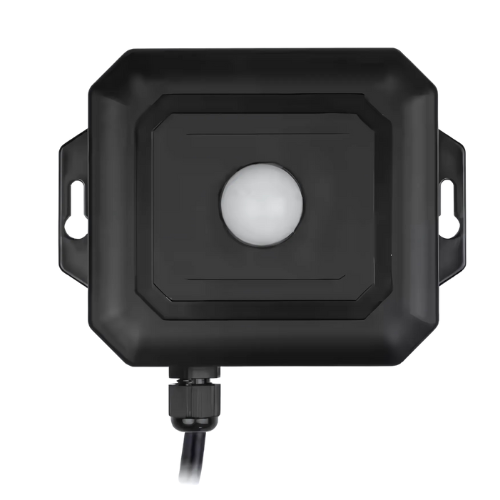

Specimen Track’s LoRaWAN wireless illuminance transmitter with IP65 protection adopts wall-mounted installation and adopts imported light sensor detection devices. It has the characteristics of high measurement accuracy, good stability, long transmission distance, and strong anti-interference ability. GPRS or LoRa or NB-IoT transmission method is adopted to upload the detection data to the first cloud platform for monitoring. It is widely used in indoor and outdoor environmental monitoring, agricultural greenhouses, flower cultivation and other occasions that require light intensity monitoring.
Features
- Using High-Quality Photosensitive Elements
- High-Precision Measurement
- Moisture-Proof Shell Design
- Superior Performance
- Good Long-Term Stability
- Wireless Transmission Without Wiring
Technical Specifications
| Theory | Wireless |
| External Supply | 10 V to 30 V |
| Light Intensity Range | 0 Lux to 65535 Lux; 0 Lux to 20 million Lux |
| Transfer Method | GPRS or LoRa or NB-IoT |
| Sampling Frequency | GPRS or NB-IoT: 10 s to 3600 s can be set |
| Operating Voltage | 3.6 V lithium battery |
| Upload Frequency | 1 min to 1440 min can be set |
| Precision | Light intensity: ± 7 % 77 °F (25 ℃) |
| Protection Level | IP65 |
| Long-Term Stability | Light intensity: ≤ 5 % / year |
| Battery Capacity | 8000 mAh |
| Response Time | ≤ 0.1 s |
| Protocol | GPRS or NB-IoT: TCP or UDP or MQTT or Coap multiple protocols are optional |
| Electrical Connections | LoRa: Proprietary protocol or LoRaWAN (Class A, OTAA mode activation) |
| Body Working Temperature | – 4 °F to 140 °F (- 20 °C to 60 °C), 0 % RH to 80 % RH |
