Overview

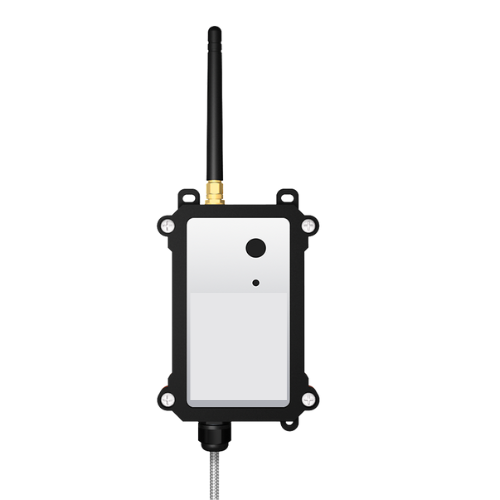

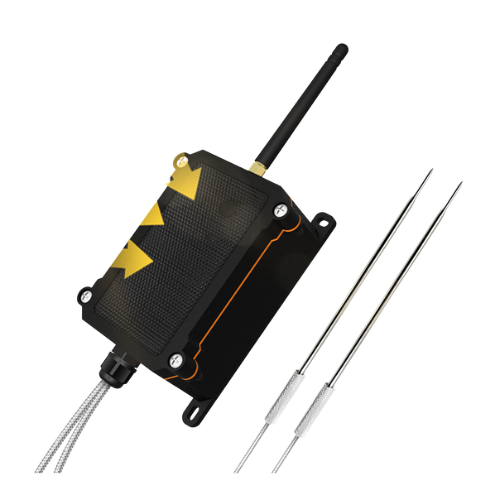

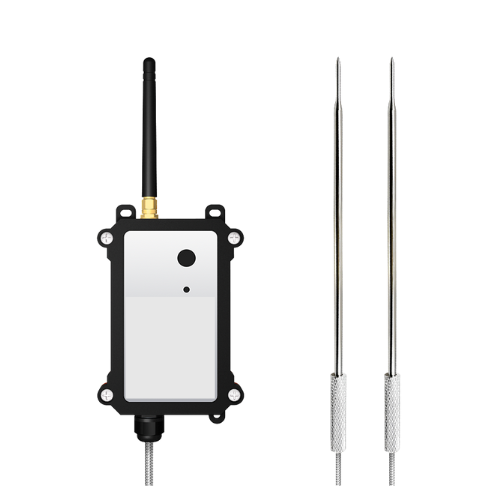

Specimen Track’s LoRaWAN Wireless Temperature Tag with Dual Sensors is a low-power, wireless device designed to monitor environmental temperatures. It can support one or two NTC temperature sensors, making this product ideal for flexible temperature sensing applications.
Features
- Enhanced Experiment Accuracy
- Regulatory Compliance
- Instant Alerts and Notifications
- Food Storage Facilities
Technical Specifications
| Application | M2M and IoT |
| Power Source | Battery (ER26500 8500mAh) |
| Communication Interface | LoRaWAN |
| LoRa Protocol | LoRaWAN Class A 1.0.3 |
| Protocol | LoRa Protocol |
| Sensor | Accelerator Sensor, supports 1 or 2 NTC sensors |
| Waterproof Rating | IP67 |
| OTA | Yes |
| LoRa Transmit Mode | 108mA at 20dBm to 90mA at 17dBm |
| Tx Power | Max +20 dBm |
| RX Sensitivity | LoRa: down to -148 dBm; BLE: -96 dBm |
| Configuration | NFC configure, BLE optional, Remote configure, AT command |
| Operating Temperature | -40°F to 428°F (-40°C to 220°C) |
| Product Weight | 7.56 oz (214 g) |
| Size | 3.54 in x 1.97 in x 1.65 in (90 mm x 50 mm x 42 mm) |
