LXS Flow Meter with Leak Detection and Alerts - Specimen Track

LXS Flow Meter with Leak Detection and Alerts – Specimen Track

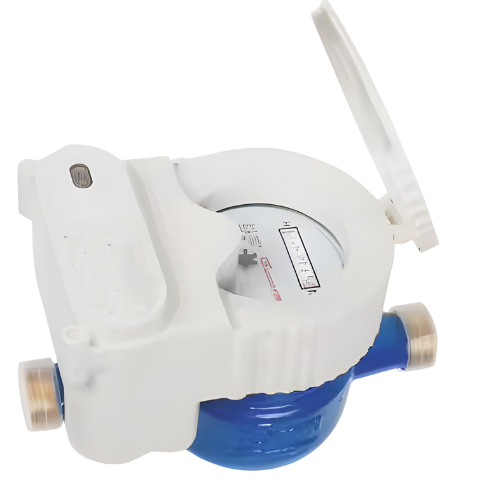

LXS NB-loT smart water meter adopts mechanical base meter. According to the customer’s needs can be matched with magnetic/no magnetic/dry/wet and other schemes, which inte grates data storage, remote communication and local communication, an-d has the advantages of ultra-low power consumption, high accuracy, high reliability and high stability.

SKU: STRUPNBM-102 Category:

Features

  • NBIoT remote data transmission.
  • Ultra-low power consumption design.
  • Leak detection and alerts.
  • High-accuracy water flow measurement.
  • Durable waterproof IP68 protection.



Technical Specifications

Application Cold Water and Hot Water Measurement
Accuracy Class 2
Body Material Cast Iron and Copper Alloy and Stainless Steel and Plastic
Installation Orientation U 0 or D 0
Connectivity NB-Iot (Narrowband Internet of Things)
Data Transmission Remote Monitoring and Reporting
Power Supply Battery-Powered (Long-Life Lithium Battery)
Temperature Rating 86 °F (T 30 °C)
Data Logging Stores Consumption History for Analysis
Leak Detection Integrated Leakage Alarm
Humidity Resistance High Humidity Tolerance
Accuracy Standard ISO 4064 or OIML R49
Nominal Diameter 80 Mm
Protection Class Ip 68
Operating Temperature Range 32 °F to 86 °F (0 °C to 30 °C)
Storage Temperature -4 °F to 131 °F (-20 °C to 55 °C)
Weight 17.6 Lbs to 33 Lbs (8 Kg to 15 Kg)
Dimension 9.8 In X 7.1 In X 9.8 In (250 Cm X 180 Cm X 250 Cm)
