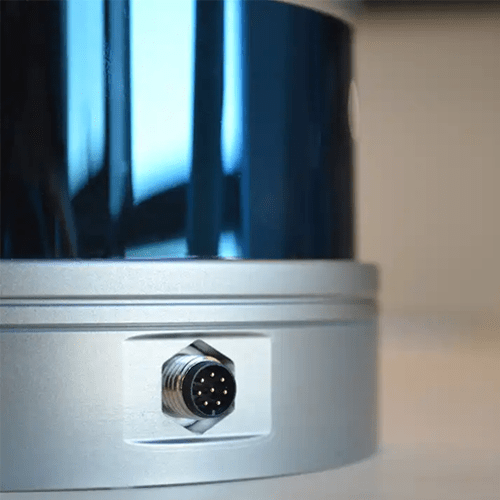

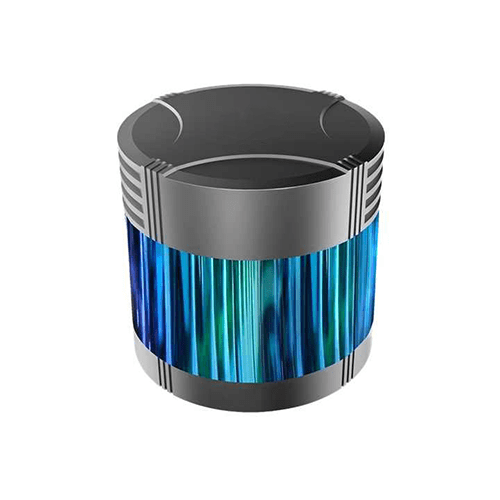

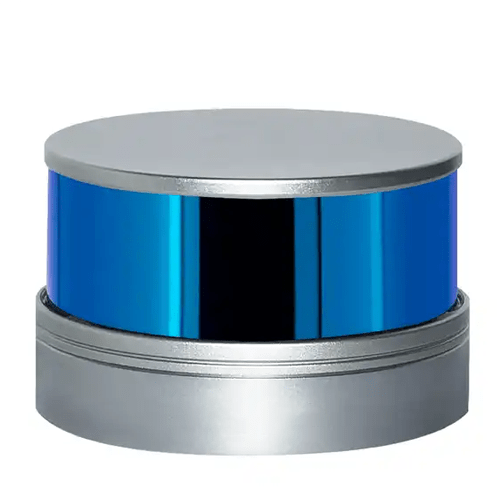

Mechanical Rotation Laser Scanner, 270° FOV, 0.787in Range Accuracy - Specimen Track

Mechanical Rotation Laser Scanner, 270° FOV, 0.787in Range Accuracy – Specimen Track

Name: Mechanical Rotation Laser Scanner, 270° FOV, 0.787in Range Accuracy - Specimen Track -
SKU: STRLDS-181

This mechanical rotation laser scanner works with a voltage range of 6 V to 36 V and operates in temperatures from -13 °F to 140 °F (-25 °C to 60 °C).

Product successfully added to the Quote List

SKU: STRLDS-181 Category: Motion Sensors

Description

Technical Specifications

Voltage Supply	19 V to 32 V
Resolution (Bits)	0.2°, 0.4°
Output Configuration	UDP packets over Ethernet
Size	normal
Size or Dimension	D4.49 in × H4.28 in (D114 mm × H108.73 mm)
Measuring Range	656.17 ft (492.13 ft 10% NIST) (200 m (150 m at 10% NIST)
Sensing Distance	656.17 ft (200 m)
Laser Safety	Class 1 eye safe
Horizontal FoV	360°
Ingress Protection	IP 67
Blind Spot	≤1.31 ft (≤0.4 m)
Operate Temperature	-22 ℉ to 140 ℉ (-30 ℃ to 60 ℃)
Storage Temperature	-40 ℉ to 185 ℉ (-40 ℃ to 85 ℃)
Weight	2.49 lb (1.13 kg)
