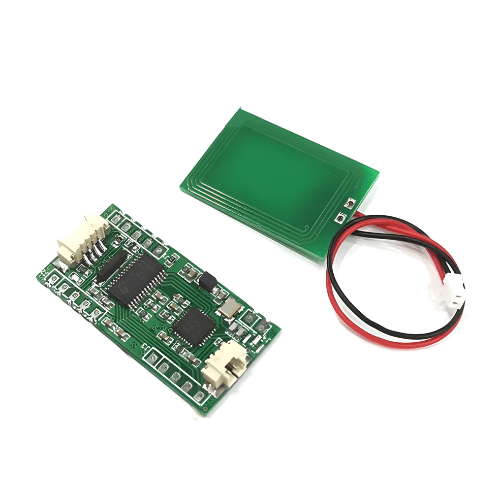

MFRC 522 RFID Reader, 13.56 MHz, IP-65, Multiple Interfaces - Specimen Track

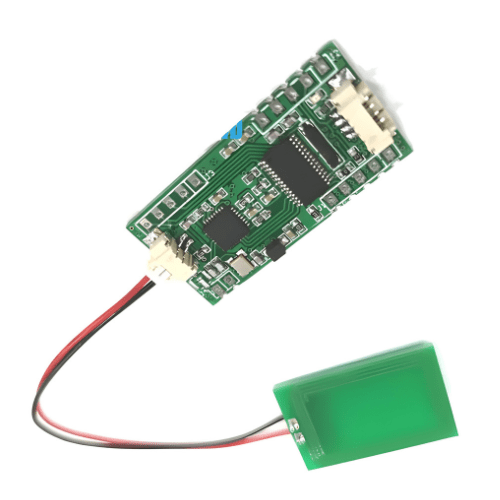

MFRC 522 RFID Reader, 13.56 MHz, IP-65, Multiple Interfaces - Specimen Track - Image 2

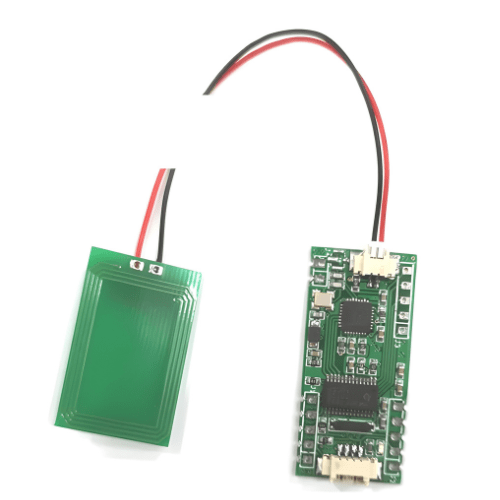

MFRC 522 RFID Reader, 13.56 MHz, IP-65, Multiple Interfaces - Specimen Track - Image 3

MFRC 522 RFID Reader, 13.56 MHz, IP-65, Multiple Interfaces – Specimen Track

13.56MHz RFID reader with MFRC 522 chip, ISO 14443-A support, multiple interfaces, IP-65 protection, wide temperature range. Compact and efficient.

SKU: STR-103 Category:

Technical Specifications

Frequency13.56MHz
Read-Write ChipMFRC 522
Baud Rate9600
StandardISO (IEC 14443-A)
Supporting CardMifare S-50, S-70, Ultralight and Mifare Pro
InterfaceTTL and RS-232
Power Supply3.3 V to 5 V
Current<70 mA
Read Distance0 cm to 0.32 ft (10 cm)
InterfaceUSB, Serial Port, RS-232, RS-485, WG-26 and WG-34
Reading Distance>0.26 ft (8 cm)
Protection LevelIP-65
ProtocolISO-14443 A
Operating Temperature14 °F to 122 °F (-10 °C to 50 °C)
Storage Temperature-4 °F to 176 °F (-20 °C to 80 °C)
Specification1.53 in X 0.74 in X 0.35 in
(39 mm X 19 mm X 9 mm)
Weight28.21 oz (800 g)
