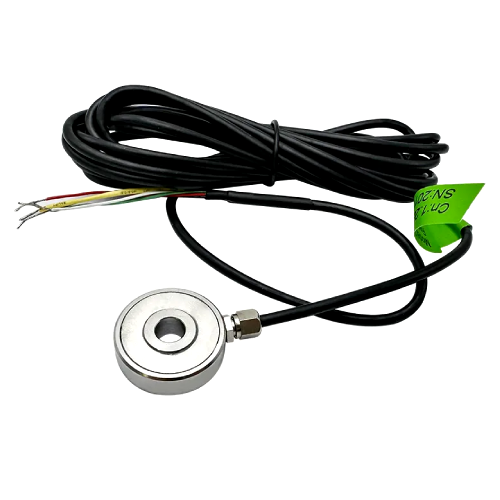

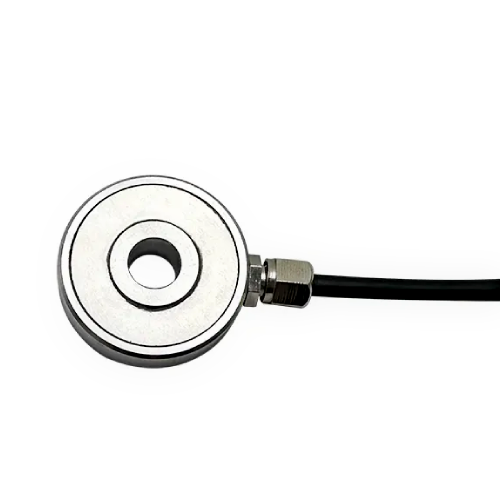

Micro Donut Washer Load Cell Force Sensor Ring – Specimen Track

Micro donut washer load cell sensor for dynamic force testing, offering precise measurements in mechanical and IoT applications.

SKU: STRMFS-304 Category:

Technical Specifications

Output MV/V
Capacity 50,100,200,500,1000N
Sensitivity 1.5±20%mV/V
Non Linearity ≤0.5%F.S.
Input Impedance 700±10Ω
Zero Balance ±5%mV/V
Recommended Excitation 10V
Max Excitation 15V
Hysteresis ≤0.2%F.S.
Repeatability ≤0.2%F.S.
Insulation Resistance ≥5000MΩ/100V(DC)
Recommended Excitation 10V
Safe Overload 150%F.S.
Material Stainless Steel
