Overview

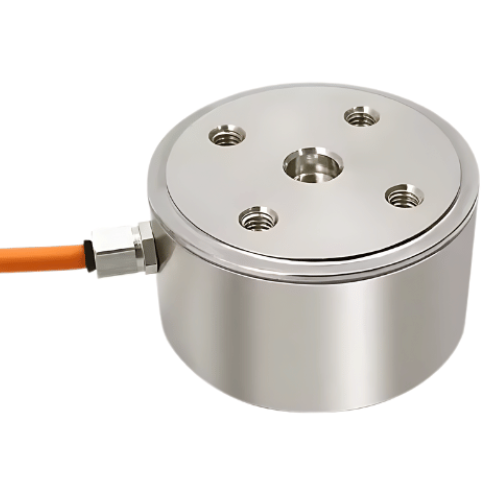

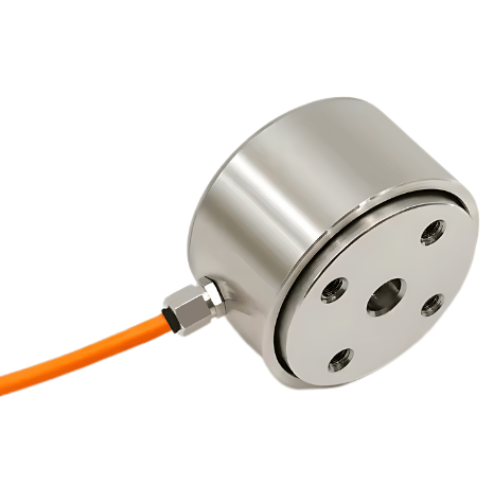

Specimen Track sensor has the characteristics of high precision, high dynamic response, large range and small volume. Stainless steel material, small size allows for small eccentricity error. With millivolt signal output, our company can help configure amplifiers, display instruments and other supporting facilities. This product can be used with the key feel tester, hot and cold press pressure detection, mechanical hand grip and other fields.
Technical Specifications
| Output sensitivity | 2.0 ± 0.05 mV / V |
| Comprehensive Error | ±0.1 % F.S |
| Nonlinear | 0.05 % F.S |
| Zero balance | ±1 % F.S |
| Safe overload | 150 % |
| Use voltage | 10 to 15 V |
| Insulation resistance | ≥ 5000 MΩ (100 VDC) |
| Rated Output | 2.0 ± 0.05 mV / V |
| Zero Balance | ± 1 % F.S |
| Non-linearity | 0.05 % F.S |
| Hysteresis | ± 0.1 % F.S |
| Repeatability | 0.05 % F.S |
| Creep (30 min) | ± 0.1 % F.S |
| Temp. effect on output | ± 0.1 % F.S / 50 °F (10 ºC) |
| Temp. effect on zero | ± 0.1 % F.S / 50 °F (10 ºC) |
| Material | Alloy steel |
| Operating Voltage Range | 10 V to 15 V |
| Safe overload | 150 % |
| Maximum Overload | 200 % |
| Operating temperature | -4 °F to 176 °F (-20 °C to 80 °C) |
| Capacity | 0 lb to 4409.24 lb (0 kg to 2000 kg) |
| Cable size | 196.85 in x 118.11 in (Φ 500 cm x 300 cm) |
| Cable ultimate pull | 22.04 lb (10 kg) |
