Overview

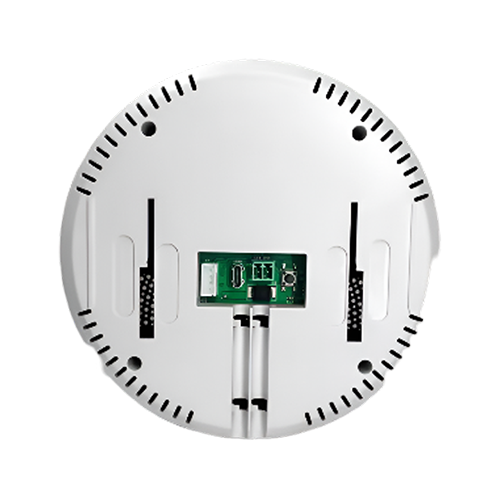

Specimen Track’s multi-function smart air quality sensor with wireless options is a multi-parameter air quality sensor, which can detect and output pm2.5, pm10, pm1.0, TVOC, temperature, humidity, ozone, alcohol, methane, ammonia, hydrogen sulfide, sulfur dioxide and other air quality in real time Quality indicators, all gas detection uses independent sensor probes. The type of detection gas can be freely selected and matched. It has compact design, small footprint, complete functions, stable performance, and high-cost performance. It supports serial port RS485, 4G, Bluetooth, WIFI and other output methods, which greatly facilitates air quality detection and the Internet of Things. Development and application of gas detection solutions.
Features
- Convection hole design
- Multi-parameter integration
- 3 light displays
- 24 h continuous online detection
- Multiple gasses detected and freely combined
Technical Specifications
| Detection Parameters | PM2.5, CO2, HCHO, TVOC, temperature, humidity |
| Working Voltage | DC 10 V to 30 V (Standard 24 V) |
| Working Current | ≤ 200 mA |
| Stable Schedule | 2 minutes |
| Detection Frequency | 1 update per second (default) |
| Output Options | Modbus-RS485, Analog, 4G, WiFi, Bluetooth, LoRa |
| Material | ABS flame-retardant shell |
| CO2 Detection | 400 ppm to 5000 ppm (1 ppm resolution, ≤ ± 10 % (50 ppm + 3 % reading)) |
| Dust | 0 µg per m³ to 1000 µg per m³ (1 µg per m³ resolution, ≤ ± 10 % reading) |
| PM 2.5 | 0 µg per m³ to 1000 µg per m³ (1 µg per m³ resolution, ≤ ± 10 % reading) 0 µg per m³ to 1000 µg per m³ (1 µg per m³ resolution, ≤ ± 10 % reading) |
| PM 1.0, PM 10 | 0 µg per m³ to 1000 µg per m³ (1 µg per m³ resolution, ≤ ± 10 % reading) |
| Formaldehyde (HCHO) | 0 mg per m ³ to 1.5 mg per m³ (0.01 mg per m³ resolution, ≤ ± 10 % reading) |
| Temperature Range | -40 °F to 212 °F (-40 °C to 100 °C), (32.18 °F (0.1 °C) resolution; ≤ ± 0.54 °F (± 0.3 °C)) |
| Humidity Range | 0 % RH to 99 % RH (0.1 % RH resolution, ≤ ± 3 % RH) |
| Atmospheric Pressure | 30 Kpa to 110 KPa (0.1 KPa resolution, mg per m³ ± 0.15 KPa) |
| Illumination | 0 Lux to 65535 Lux (1 Lux resolution, ≤ ± 7 % reading) |
| TVOC Detection | 0 mg per m³ to 5 mg per m³ (0.001 mg per m³ resolution, ≤ ± 10 % reading) |
| Ozone (O3) Detection | 0 ppm to 10 ppm (0.001 ppm resolution, ≤ ± 2 % reading) |
| Oxygen (O2) Detection | 0 Vol to 25 % Vol (0.1% Vol resolution, ≤ ± 3 % reading) |
| Hydrogen Sulphide (H2S) | 0 ppm to 100 ppm (1 ppm resolution, ≤ ± 3 % reading) |
| Methane (CH4) | 0 % ELE to 100 % ELE (1% ELE resolution, ≤ ± 5 % reading) |
| Carbon Monoxide (CO) | 0 ppm to 1000 ppm (1 ppm resolution, ≤ ± 3 % reading) |
| Nitrogen Dioxide (NO2) | 0 ppm to 1000 ppm (0.1 ppm resolution, ≤ ± 3 % reading) |
| Sulphur Dioxide (SO2) | 0 ppm to 20 ppm (0.1 ppm resolution, ≤ ± 3 % reading) |
| Hydrogen Gas (H2) | 0 ppm to 1000 ppm (1 ppm resolution, ≤ ± 3 % reading) |
| Ammonia (NH3) | 0 ppm to 20 ppm (0.1 ppm resolution, ≤ ± 2 % reading) |
| Storage Humidity | 0 % RH to 99 % RH |
| Operating Humidity | 0 % RH to 95 % RH |
| Storage Temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Operating Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Dimensions | 3.94 in × 3.94 in × 1.18 in (100 mm × 100 mm × 30 mm) |
