Features
- Long-range location tracking
- MQTT and HTTP protocol
- Nano and eSIM support
- Bluetooth 5.0 connectivity system
- Anti-UV PC-ABS housing
Technical Specifications
| Chipset | SX1276 |
| Application | Positioning and Navigation |
| Type | BLE Module |
| Function | IoT System |
| Bluetooth Protocol | Bluetooth 5.0 |
| Band | US915, AU915, EU868, EU433, AS920-923, AS923-925, RU864, ID920, KR920, IN865, KZ865, CLAA, CN470, CN470-Ali |
| Maximum RF Power | 20dBm |
| Access Quantity | >500 in one LoRa gateway |
| Data Rate (bps) | 30 to 30K |
| Beacon Access Quantity | 100 beacon messages can be received within 1s, Maximum of 15 beacon messages at one single LoRa communication |
| Certification | CE, FCC, RCM, BQB |
| Peak Current | Max. 140mA in transmit mode |
| Ingress Protection | IP66 |
| Positioning Precision | 3 metres |
| Encryption | AES128, X509 |
| Battery | 5.300 mAh |
| Bluetooth Positioning | Approx. 150,000 times |
| Standby Current | 25 μA |
| Max. Current | 300 mA |

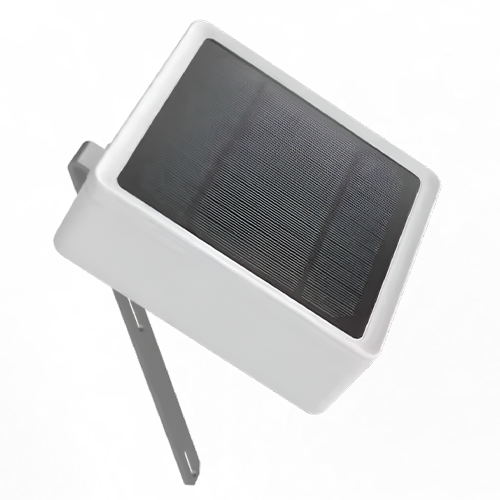

| Solar Panel | 3 W |
| Max. Charging Current | 500 mA |
| Charging Rate | Max. 1500 mAh each day |
| Battery Life | 1 month @ 10s Bluetooth receiving duration and 60 report interval |
| Certification | CE, FCC, RCM |
| Operating Temperature | -40 °F to 185 °F ( -40 ℃ to +85 ℃ ) |
| Weight | 5.29 oz (150 g) |
| Dimension | 6.30 in × 6.30 in × 2.17 in (160 mm x 160 mm x 55 mm) |
