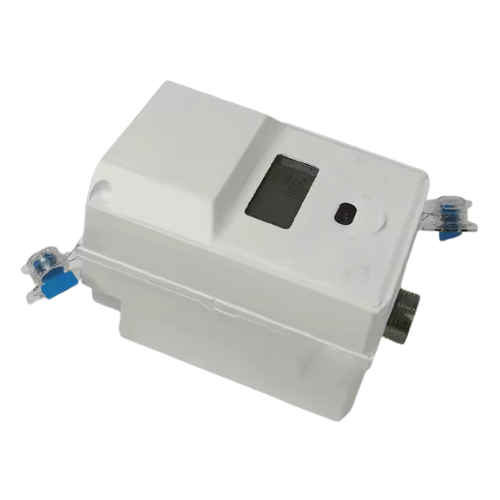

NB IoT Ultrasonic Water Meter with IP68 Protection – Specimen Track

This ultrasonic water meter adopts ultrasonic flow measurement technology, with control valve function, built-in NB-iot or LoRa or LoRaWAN wireless meter reading module.  Water meter small volume, low pressure loss, high stability, can realize multi-angle installation, water meter measurement is not affected.

SKU: STRUPNBM-107 Category:

Features

  • Ultrasonic measurement principle, no mechanical wear, long service life.
  • Wide range ratio, the measurement grade is better than D grade meter.
  • Low starting flow, up to 0.0015m³/h, can realize drip metering.
  • The whole machine IP68 protection grade, can work in water for a long time.
  • Adopt micro power consumption technology, battery powered, can work continuously for more than 10.



Technical Specifications

Accuracy Grade Level 2
Nominal Diameter DN 15 to DN 25
Range Than R 250
Max Working Pressure 1.6 Mpa
Temperature Grade T 30
Sensitivity Level of Upstream Flow Field U 0
Sensitivity Level of Downstream Flow Field D 0
Electromagnetic Compatibility Level E 2
Interface Optical Interface and NB-Iot
The Alarm Reporting Supports Timely Alarm of Abnormal Data
Categories Of Climatic and Mechanical Environmental Conditions Category C
Level Of Protection Ip 68
Humidity 100 % Rh
Working Power Supply Battery Powered
Temperature -13 °F to 131 °F (-25 ℃ to 55 ℃)
Dimension 9.84 In X 4.72 In X 3.94 In ( 25 Cm X 12 Cm X 10 Cm)
Weight 1.10 Lb (500 Kg)
