Features
- Customizable wavelengths and range
- Fiber event mapping
- Remote control capability
- Versatile fiber testing
Technical Specifications
| Display | Toughened glass, 3.5 in Color LCD |
| Data Interface | Micro USB |
| Power Supply | Polymer Li-Battery: 3.7 V, 4000 mAh |
| Battery Life | Standby: 20h, Measuring time: 12h |
| External Storage | TF Card |
| Wavelength | 1310 nm/1550 nm ± 20 nm |
| Fiber Type | G.652 |
| Dynamic Range | 26 dB/24 dB |
| Event Blind Zone | 8.20 ft (2.5 m) |
| ATT Blind Zone | 26.24 ft (8 m) |
| LD Type | FP-LD |
| Output Power | 2 dBm to 5 dBm |
| Modulation Frequency | 270/330/1k/2 kHz |
| Stability | CW, ±0.5 dB/15 min |

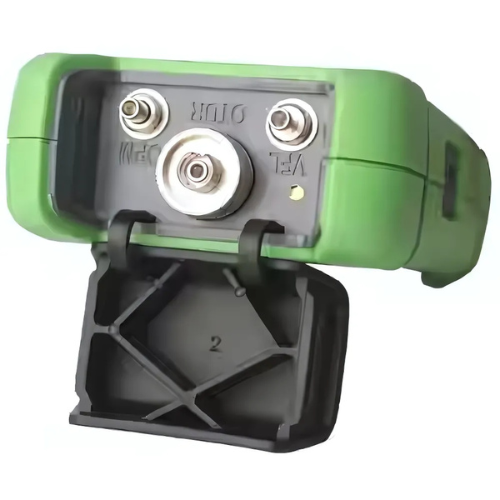

| Connector | FC/UPC (Interchangeable SC, ST) |
| VFL Wavelength | 650 nm + 20 nm |
| VFL Output Power | 10 mW |
| VFL Mode | CW/1Hz/2Hz |
| Test Range | 1.640 ft to 79.53 mi (500 m to 128 km) |
| Pulse Width | 3 ns to 10 µs |
| Ranging Accuracy | ±0.005% x Test distance |
| Loss Accuracy | ±0.2 dB/dB |
| Sampling Points | 16 k to 128 k |
| Sampling Resolution | 0.16 ft to 26.24 ft (0.05 m to 8 m) |
| Reflection Accuracy | +3 dB |
| OPM Wave Range | 800 nm to 1700 nm |
| OPM Test Range | 50 dB, 26 dBm |
| OPM Uncertainty | ±5% |
| OPM Frequency Identification | CW/270/330/1k/2 kHz |
| Calibration Wavelength | 850, 980, 1300, 1310/1400, 1550, 1625, 1650 nm |
| OPM Output Power | 984 ft (300 m) |
| Operating Temperature | 14 ℉ to 122 ℉ (-10 ℃ to + 50 ℃) |
| Storage Temperature | -40 ℉ to 158 ℉ (-40 ℃ to +70 ℃) |
| Relative Humidity | 0% to 95% non-condensing |
| Size | 6.81 in x 3.22 in x 1.45 in (17.3 cm x 8.2 cm x 3.7 cm) |
| Weight | 12.34 oz (350 g) |
