Name: Optical Time Domain Reflectometer with Built In VFL - Specimen Track -
SKU: STRTDRT-105

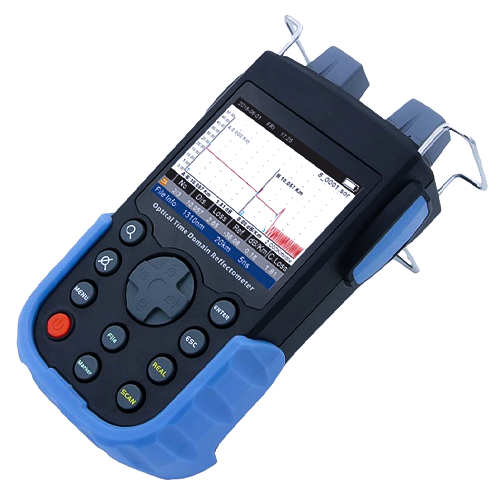

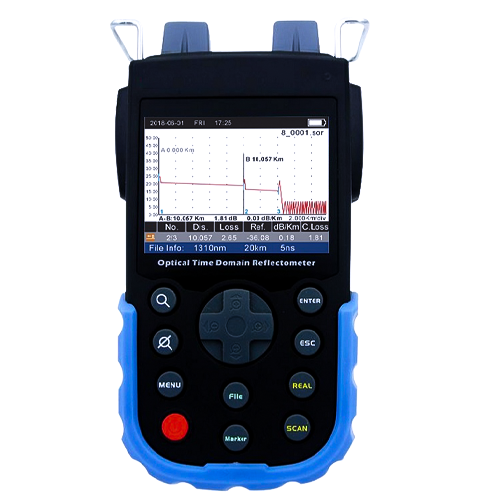

Optical Time Domain Reflectometer with Built In VFL – Specimen Track

Optical time-domain reflectometer offering precise measurements, reliable performance, and ideal for efficient fiber optic network diagnostics.

SKU: STRTDRT-105 Category: Ethernet

Features

Technical Specifications

Data Storage	Internal (TF card is optional)
Battery	Built-in rechargeable battery
Working Time	Standby: >15 hours, Measurement: >8 hours
Dead Zone	Event: 4.92 ft (1.5 m) / Attenuation: 16.4 ft (5.0 m) (13.1 ft / 29.5 ft at 850 nm)
Visual Fault Locator (VFL)	1 mW
Display	3.5-inch TFT color LCD
Loss Resolution	0.001 dB
Minimum Distance Resolution	0.33 ft (0.1 m)
Optical Power Meter (Optional)	T: +8 to -70 dBm or C: +26 dBm to -50 dBm (only available when OTDR has a single connector)
Operating Temperature	14°F to 122°F (-10°C to 50°C)
