Overview

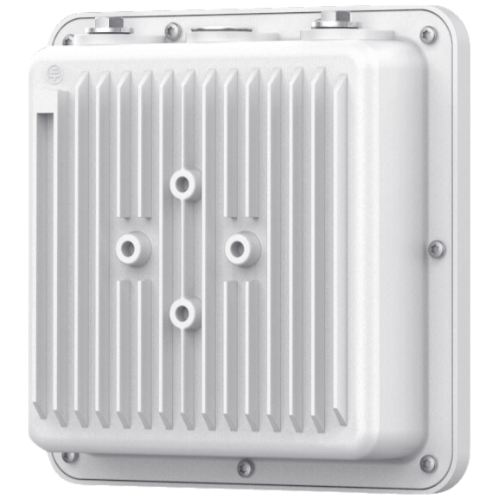

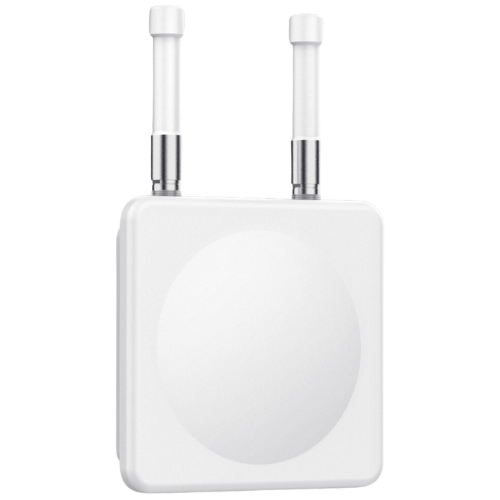

Specimen Track outdoor Bluetooth-lorawan gateway with long-range support is a Bluetooth-LoRaWAN gateway that seamlessly combines LoRa and Bluetooth wireless communication. This device is capable of scanning Bluetooth Beacon data, transmitting it to a LoRaWAN-based gateway, and subsequently uploading it to a server. This functionality enables personnel tracking, outdoor positioning, asset monitoring, and environmental monitoring.
Technical Specifications
| Application | IoT Application |
| Bluetooth | BLE 5.0 |
| BLE Scan Distance | Up to 601.48 yard (550 m) (in urban open space) |
| LoRa Protocol | LoRaWAN V1.0.3 |
| LoRa Frequency | EU868, US916, AS923, IN865, KR920, RU864, AS923-1, AS923-2, AS923-3, AS923-4 |
| LoRa Communication Distance | Up to 3.72 mile (6 km) |
| Power Supply | 57000 mAh, replaceable |
| IP Rating | IP67 |
| Shell Material | PVC + ADC12 |
| Certification | FCC CE |
| Operating Temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Dimension | 7.67 in × 7.67 in × 2.75 in (19.5 cm × 19.5 cm × 7 cm) |
| Net Weight | 2.28 lb (1.035 kg) |
