Overview

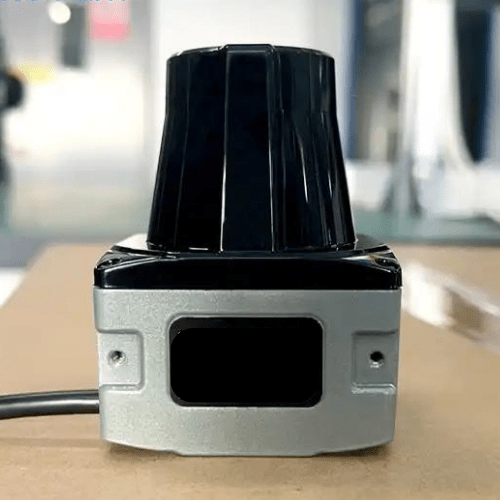

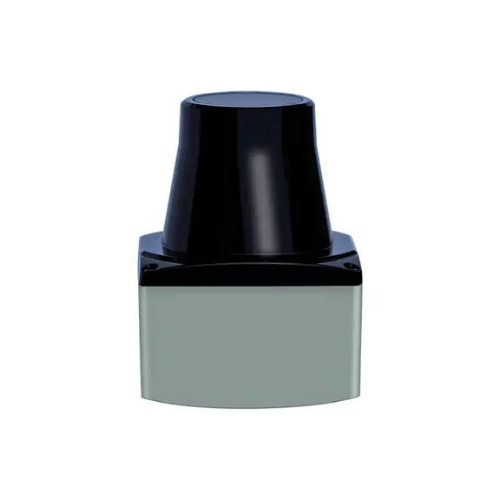

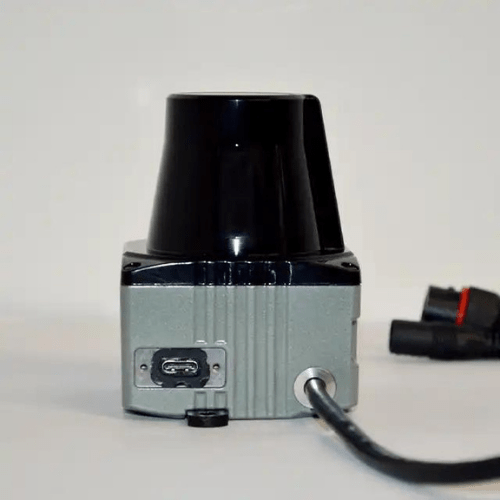

Specimen Track 2d mobile lidar sensor is a single-line LiDAR developed for medium and low-speed scenarios. The industrial design is exquisite and compact, making the product small, light in weight, and high in performance. It supports ultra-high frequency sampling and optional angular resolution and achieves zero blind spots within the detection range.
Technical Specifications
| Horizontal FOV | 270 º |
| Distance Resolution | 0.39 in (1 cm) |
| Horizontal Resolution &Rotating Frequency | 0.2° (10 Hz) 0.5° (20 Hz） |
| Protection Distance | ≥15 m, 70% reflectivity ≥ 10 m, 10% reflectivity |
| Data Sample Rate | 18 kHz (10 Hz) 14.4 kHz (20 Hz) |
| Range Accuracy | ±2 cm |
| Wavelength | 940 nm |
| Operating voltage | 6 V to 36 V |
| Power consumption | <2.5 W |
| Operating Temperature | -13 ºF to 140 ºF (-25 ºF to 60 ºC) |
| Storage Temperature | -40 ºF to 167 ºF (-40 ºF to 75 ºC) |
| Size | 2.3 in x 2.3 in x 3.14 in (60 mm x 60 mm x 80 mm |
