Technical Specifications
| Customized Support | OEM, ODM |
| Material | ABS |
| Color | 7-inch color touch LCD screen |
| Power | 220VAC/24VDC |
| Channels | 1-32 channels |

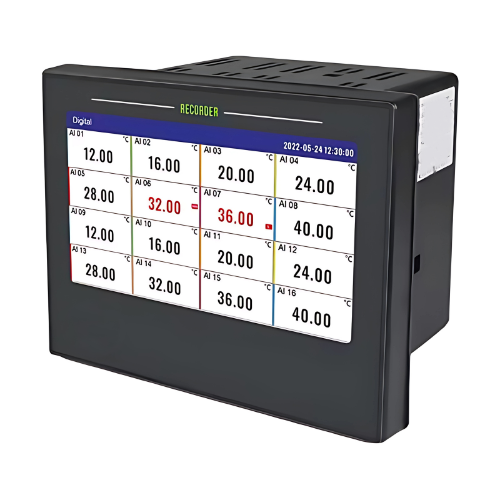

| Product Name | R72 Data Logger |
| Application | Temperature, flow rate, pressure, etc. |
| Display | LCD Display |
| Function | Store, Record |
| Accuracy | 0.2 % |
| Screen Size | 7-inch Meter size |
| Display Screen | 7-inch color touch LCD, 800*480 resolution |
| Measurement Accuracy | 0.2 FS |
| Sampling Period | Adjustable |
| Alarm Relay | 16-way normally open relay, 250 VAC 3A, 30 VDC 3 A (resistive load) |
| Transmission Output | 8-way 4-20mA, load |
| 24VDC Power Distribution | 2 channels of 24 VDC ± 10%, total output current |
| RS485 Communication | One RS485 interface, Modbus RTU protocol |
| USB Interface | USB 2.0, supports large-capacity USB |
| Power Supply | AC 100-240 VAC 50 Hz / DC 24 VDC soil 10%, power ≤ 20 W |
| Preheat Time | 30 minutes after power on |
| Working Environment | Temperature: -1085%RH (no condensation) |
| EMC Anti-interference | Contact discharge 4000V, Air discharge 8000V |
| RS485 Acquisition | One RS485 acquisition interface, Modbus RTU protocol |
| Ethernet Communication | One Ethernet interface, Modbus TCP protocol |
| Weight | 4.41 lb. (2kg) |
| Panel Dimensions | 7.36 in x 5.79 in (18.7 cm x 14.7 cm) |
