| CPU |
Dual Core 1000 MHz |
| DDR |
512 MB |
| FLASH |
256 MB |
| Wireless rate |
2.4 GHz, 574 Mbps 2 x 2 11 n |
| 5 GHz, 2402 Mbps 2 x 2 11 ax |
| Antenna |
2 x 5 dBi external antenna (dual band antenna) |
| Interface |

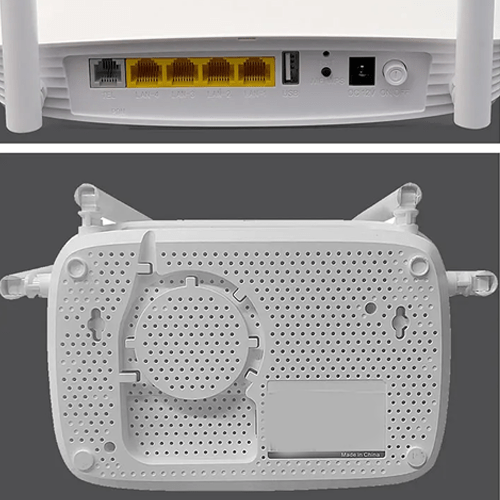

4 x GE, 1 x FXS, 1 x USB |
| Button |
1 x WPS, 1 x RESET, 1 x POWER, 1 x ON, OFF |
| LED |
Power, PON, LOS, LAN 1, LAN 2, LAN 3, LAN 4, WLAN, POTS, INTERNET, USB |
| Wi-Fi Agreement |
IEEE 802.11 b, g, n, ac, ax support |
| Work model |
PPPoE, DHCP, Static IP mode |
| Management approach |
OMCI, Web UI management, SSH management using cli commands, Dual system software backup |
| Wireless Configuration |
Wi-Fi Basic Parameter Configuration, Blacklist |
| System |
System properties, password modification, backup upgrade, restart |
| MTBF |
>30000 H |
| Power Consumption |
W ≤18 W |
| Working humidity |
10% to 95%, no condensation |
| Storage humidity |
5% to 95%, no condensation |
| Power adapter |
DC 12 V, 1.5 A |
| Working temperature |
32 ℉ to 113 ℉ (0 ℃ to 45 ℃) |
| Storage temperature |
-4 ℉ to 158 ℉ (-20 ℃ to 70 ℃) |
