Overview

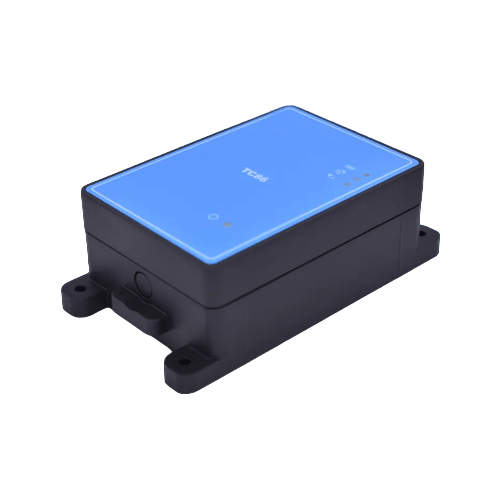

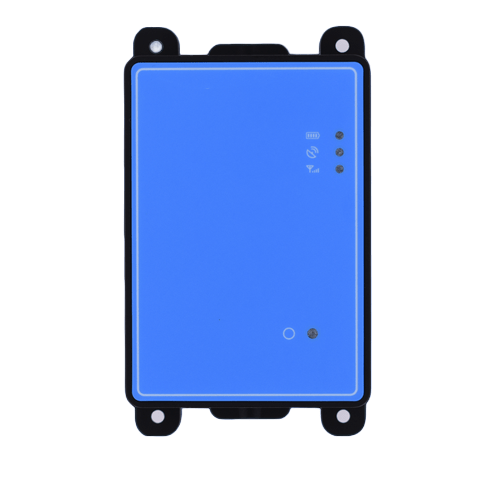

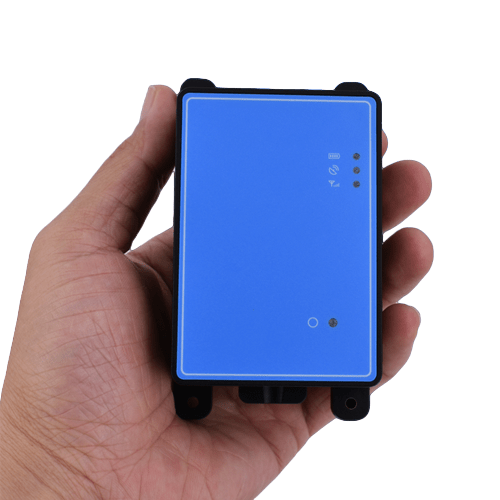

GAOTek Rugged GNSS Tracker is a powerful long standby time gnss tracker, designed for container, trailer, asset tracking, and fleet logistics management. Multiple optional networks and sensors can be chosen to fit for different projects. In-built 3-axis g-sensor allows TC86 to detect movement and transmit an alert message. Removed alert and battery low power alert are also provided.
Technical specification
| Working Current | 30 mA to 100 mA |
| Sleep Current | 30 uA |
| Network Antenna | Internal |
| GNSS Antenna | Internal |
| Sim Type | Micro Sim / Esim |
| Transmit Protocol | TCP, UDP 2G,3G,4G,NBIoT network |
| SMS | Text-data 2G,3G,4G network |
| Log Saving | 2000 PCS |
| Firmware Upgrade | OTA |
| Waterproof Level | IP 66 |
| Operating Temperature | -40 ℉ to 185 ℉ (-40 ℃ to 85 ℃) |
| Operating Humidity | Up to 95% RH Non-Condensing |
| Dimension | 4.06 in x 2.28 in x 1.38 in (103 mm x 58 mm x 35 mm) |
| Weight | 0.40 lb (180 g) |
