Overview

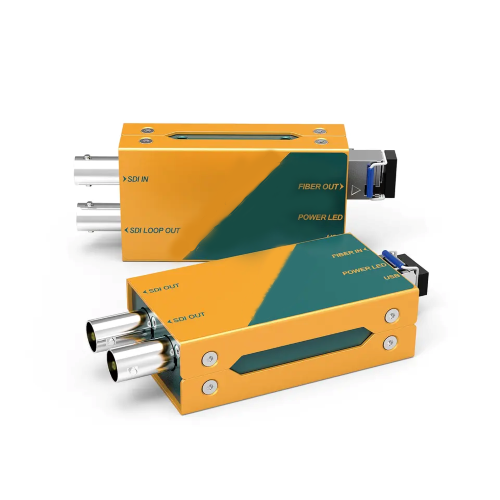

Specimen Track SFP Fiber Optic Converter, 12G SDI, 10 km Range is a transmitter or receiver kit supporting single-mode LC simplex fiber extensions up to 6.21 mi (10 km). It is a miniature-style extension solution that supports all SDI format resolutions up to 4 KHz at 60 Hz with audio and metadata. It also supports level A and level B for 3G-SDI. It features a local SDI loop out and dual SDI outputs and supports SD or HD SD or 3G 6G or 12G to SDI signals. It is also compatible with multimode fiber.
Features
- 21 mi (10 km) transmission distance

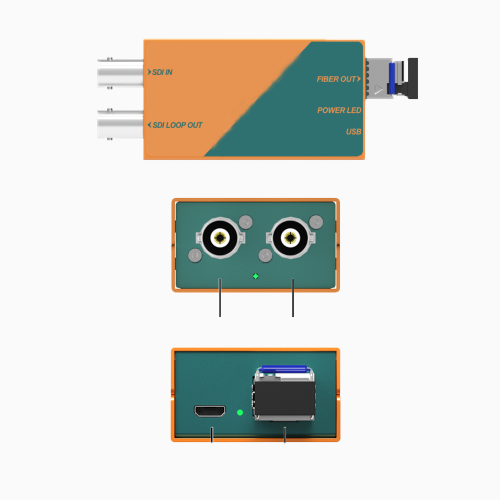

- 12 G or 6 G or 3 G SDI input and loop out on transmitter
- Supports up to 12 G bandwidth
- SDI input automatic switching SD, HD 3 G, 6 G,12 G SDI
- SFP or LC fiber transmitter and receiver
- SDI equalization and re-clocking
- USB power supply
Technical Specifications
| Transmitter SDI Video Input | SD or HD or 3G or 6G or 12G to SDI or ASI (75 Ω) × 1 |
| Transmitter SDI Loop Output | SD or HD or 3G or 6G or 12G to SDI or ASI (75 Ω) × 1 |
| Transmitter Fiber Optical Output | SFP module (LC) × 1 |
| Receiver Fiber Optical Input | SFP module (LC) × 1 |

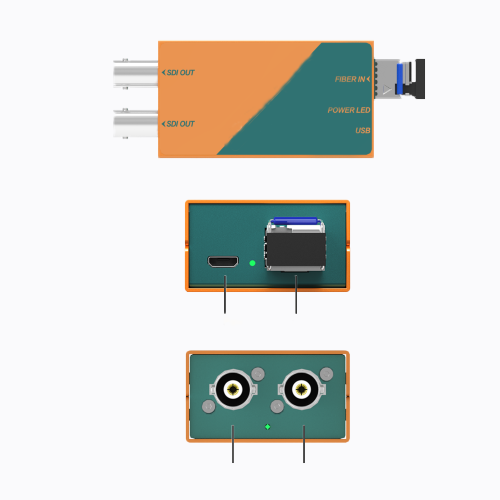

| Receiver SDI Video Output | SD or HD or 3 G or 6 G or 12 G to SDI or ASI (75 Ω) × 1 |
| Optical Fiber Module | SFP module: Hot-Pluggable Connector style: LC Fiber type: Single mode Optical wavelength: 1310 nm Max. bandwidth: 12 Gbps Optical transmit power: -4 dBm Receiver sensitivity: -12 dBm |
| Single-mode Max. Distance | 6.21 mi (10 km) for 12 G (4 K 60 P) |
| Optical Fiber Compliance | SMPTE 297M |
| SDI Compliance | SMPTE ST-2081, SMPTE ST-2082, SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, ITU-R BT.656, ITU-R BT.601, SMPTE 274M, SMPTE 425M |
| SDI Auto Switching | SD or HD or 3G or 6G or 12G to SDI on input |
| SDI Video Rate | SD or HD or 3G or 6G or 12G to SDI |
| SDI Color Space | YUV, RGB |
| SDI Equalization and Re-clocking | Yes, SDI input and output support up to 196.85 ft (60 m) for 12 G to SDI |
| SDI Audio | Supports 32 or 16 channels embedded |
| Power | Micro USB |
| Power Consumption | 1.5 W |
| Voltage Range | 3.3 V to 5 V |
| Operating Temperature | -4 ⁰F to 140 ⁰F (-20 ⁰C to 60 ⁰C) |
| Storage Temperature | -22 ⁰F to 158 ⁰F (-30 ⁰C to 70 ⁰C) |
| Relative Humidity | 0% to 90% non-condensing |
| Dimension | 2.79 in × 1.61 in × 0.90 in (71 mm × 41 mm × 23 mm) |
| Weight | 0.44 lb + 0.44 lb (200 g + 200 g) |
