Features
- Card type of 125 KHz and 13.56 MHz
- Support cards of Em 4200 or Tk 4100 or T 5577 or Em 4305, NFC, UL

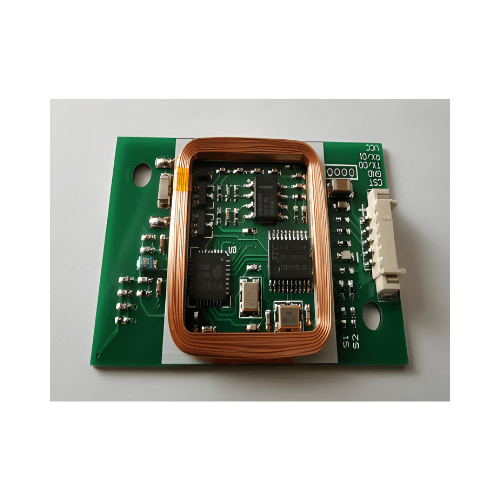

- Contactless RFID Card Reader
- Card reading distance of 0 ft to 0.26 ft
- Power Supply of 5 V or 3.3 V
- Built-in special card reading chip
Technical Specifications
| Frequency | 13.56 MHz and 125 kHz |
| Interface | TTL and Wiegand 26 or Wiegand 34 and USB |
| Protocol | ISO14443A/B, ISO15693 & ISO18092 |
| Supporting Card | EM 4100 or EM 4200 or TK 4100 MIFARE S 50 or S 70 or Ultralight |
| Power Supply | 3.3 V to 5 V |
| Current | <70 mA |
| Antenna | Integrated |
| Reading Distance | 0 in to 1.97 in (0 cm to 5 cm) |
| Storage Temperature | -4 °F to 176 °F (-20 °C to 80 °C) |
| Operating Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Dimensions | 1.77 in x 0.98 in (45 mm x 25 mm) |
