Name: Specimen Track 13.56 MHz Frequency RFID Card Reader Module -
SKU: STRHMOD-142

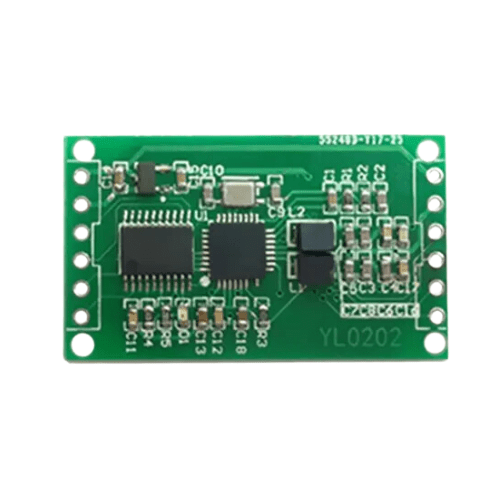

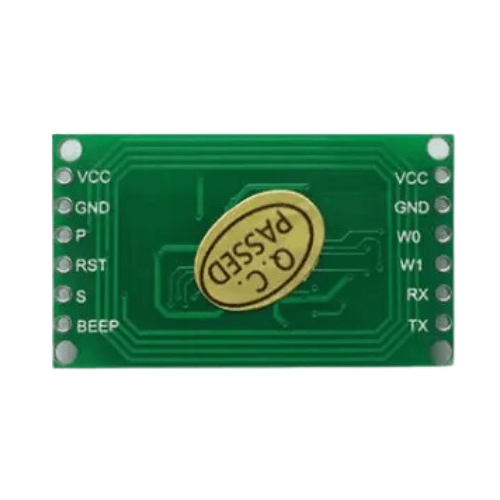

Specimen Track 13.56 MHz Frequency RFID Card Reader Module

13.56 MHz Frequency. Supports UART (TTL) and Wiegand 34 output ports. 3 V to 5.5 V Working Voltage. Consumes low working current of 19 mA to 25 mA.

SKU: STRHMOD-142 Category: Radio Frequency Identification (RFID)

Features

Technical Specifications

Supported Card Types	MIFare 1 (S 50 or Ultralight) cards
Card Reading Distance	Up to 1.96 in (50 mm)
Output Port	UART (TTL) and Wiegand 34 output ports
Output Mode	Direct serial port output,
Protocol	ISO 14443-A
Temperature	-4 °F to 185 °F (-20 °C to 85 °C)
Dimension	1.37 in X 0.78 in (35 mm X 20 mm)
Weight	10.58 oz (300 g)
