Overview

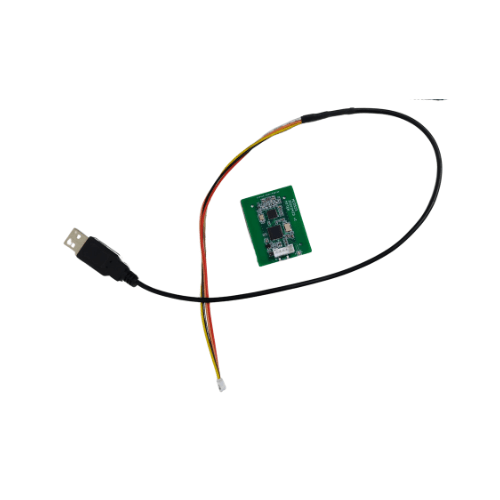

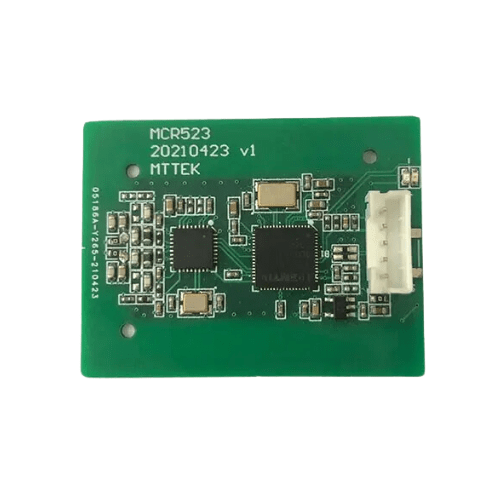

Specimen Track 13.56 MHz NFC PC Or SC Contactless Smart Card Reader Module. MCR 523-M is the ideal combination of contactless and near-field communication (NFC) technologies in just one single device. Featuring contactless technology NFC, this PC-linked reader supports end-user environments where virtually all kinds of contactless credentials are being used, even in mixed populations.
Features
- Modern Design
- Convergence
- Fast Transaction
- Interoperability
- Driver Support
- OEM and ODM Support
- Free SDK
- Status Indicator
Technical Specifications
| Frequency | 13.56 MHz |
| Host Interface | USB 2.0 CCID (USB 1.1 or 3.0 compliant) |
| Driver | PC or SC API |
| OEM & ODM | Supported |
| Connector | 1.5 m USB cable with USB type A connector |
| Protocol | ISO or IEC 14443 |
| Temperature | 0 °C to 50°C (32 °F to 122 °F) |
| Dimension | 1.693 in X 1.29 in X 0.31 in (43 mm X 33 mm X 8 mm) |
| Weight | 5.29 oz (150 g) |
