Features

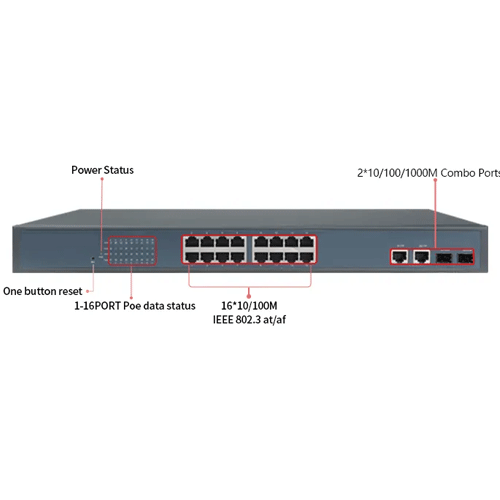

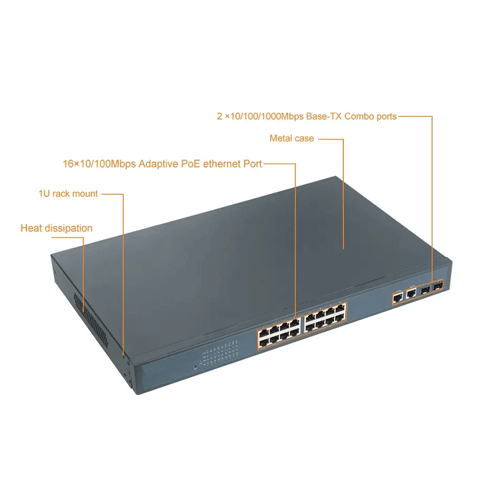

- 16 ports with poe, 2 ports 10 / 100 / 1000 M rj45 and SFP
- POE output voltage 24 V DC, 45+ 78-
- Support poe power up to 30w for each port
- Auto detect powered device (PD)
- Safe and reliable power to tech of poe end device
- Plug and play, no configuration required
Technical Specifications
| Ports | 16 + 4 |
| Bandwidth | 8.8 Gbps |
| Packet forwarding | 12.5 Mpps |
| MAC | 8 K |
| Buffer | 256 kb |
| Transmission | Store and forward |
| Environmental | Working Temperature: 32 °F to 122 °F (0 ℃ to 50 ℃)
Storage temperature: – 40 °F to 158 °F (- 40 ℃ to 70 ℃) Working Humidity: 10 % to 90 % non-coagulation Storage Humidity: 5 % to 95 % non-coagulation |
| Power in | 100 V AC to 240 V AC, 50 or 60 Hz |
| Power | 260 W or 300 W |
| Weight | 11.02 lb (5 kg) |
| Dimension | 17.32 in x 12.99 in x 1.57 in (44 cm x 33 cm x 4 cm) |
Click Here to Download Technical
Documentation (User Manual or Instruction Manual)
